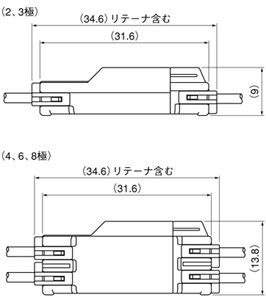

| Series | HIL connector |
| Category | Wire-to-Wire Connectors |
| Wiring type | Crimp style |
| Panel mounting | Free-hanging |
| Array (Insertion part) | Single-row, Dual-row |
| Lock | Secure lock (Inner), Secure lock (Center), Inertia lock |
| Retainer | Retainer |
| Mating assist | Keying |
| Standard | PSE |
| Pitch | 3.3mm |
| Circuit | 2, 3, 4, 6, 8 |
| Current rating | 5 A AC/DC (2 circuits, AWG #18) 2 A AC/DC (8 circuits, AWG #24) |
| Voltage rating | 300 V AC/DC |
| Temperature range | -25℃ to +85℃ |
| Insulation resistance | 1,000MΩ min. |
| Withstanding voltage | There shall be no breakdown or flashover while applying 1,500 VAC for one minute. |
| Conductor size | AWG #24,#22,#20,#18 0.2mm2 to 0.75mm2 |
| Insulation O.D. | φ1.3mm to φ2.7mm |
| Product | IGES | STEP | 3D-PDF | 2D-PDF | |
| 1 | HILP-02V-1-S | Download | Download | Download | Download |
| 2 | HILP-03V-1-S | Download | Download | Download | Download |
| 3 | HILP-04V-1-S | Download | Download | Download | Download |
| 4 | HILP-06V-1-S | Download | Download | Download | Download |
| 5 | HILP-08V-1-S | Download | Download | Download | Download |
| 6 | HILR-02VF-1-S | Download | Download | Download | Download |
| 7 | HILR-03VF-1-S | Download | Download | Download | Download |
| 8 | HILR-04VF-1-S | Download | Download | Download | Download |
| 9 | HILR-06VF-1-S | Download | Download | Download | Download |
| 10 | HILR-08VF-1-S | Download | Download | Download | Download |
| 11 | HILS-02V | Download | |||
| 12 | HILS-03V | Download | |||
| 13 | HILS-04V | Download | |||
| 14 | SHIF-01T-P0.5 | Download | |||
| 15 | SHIF-21T-P0.5 | Download | |||
| 16 | SHIM-01T-P0.5 | Download | |||
| 17 | SHIM-21T-P0.5 | Download |
