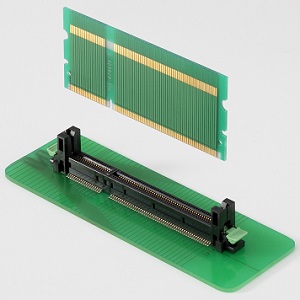

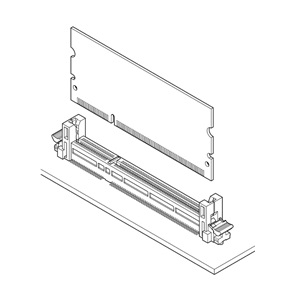

DM-144P connector JEDEC-MO-274
Socket for DDR2 S.O.DIMM 144-circuits complying with JEDEC MO-274 standard.
Product Profile
SeriesDM-144P connector JEDEC-MO-274
CategoryCard Edge Connectors
Sub
category		Card-to-Board
PC board
mounting		SMT
Mating
direction		Top entry
StandardJEDEC, S.O.DIMM
Specification
Pitch0.8mm
Circuit144
Current
rating		0.5 A AC/DC
Voltage
rating		250 V AC/DC
Temperature
range		-25℃ to +85℃
Insulation
resistance		250MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 250 VAC for one minute.
Catalog Catalog
Shopping Site DM-144P connector JEDEC-MO-274

3D/2D Data
Product2D-PDF
1DM-5D7-B3200Download
[Notes]
"-"  in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells: Indicates products that are being prepared for listing.
