HOME > Product Profile

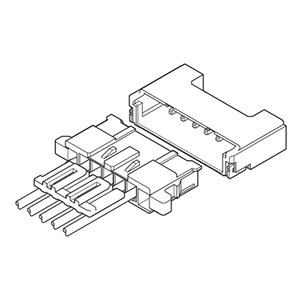

XAG connector (Wire-to-Board)
pdf Catalog 2D3d 3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1SM05B-XAGKS-BN-TBDownloadDownloadDownloadDownload
2SXA-01T-P0.6DownloadDownloadDownloadDownload
3XAGRP-051-KDownloadDownloadDownloadDownload
4XAGS-053-KDownload
Shopping Site
Product Profile
SeriesXAG connector (Wire-to-Board)
CategoryCrimp Style Connectors (Wire-to-Board type)
TypeCrimp style, With secure locking device
FeatureLow-profile
With secure locking device
Specification
Pitch2.5mm
Current rating3A (AWG#20)
Voltage rating250V
Product description
This is a 2.5mm pitch, crimp style, wire-to-board connector.

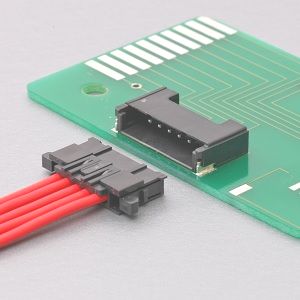

XAG connector (Wire-to-Board)
