FAZ connector

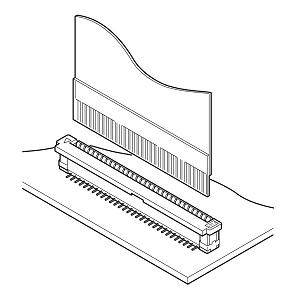

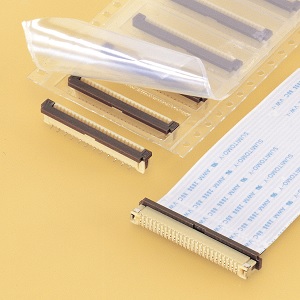

The FAZ connector is SMT type for PC board connector, which is a Zero Insertion Force (ZIF) type for FFC connection with a lead pitch 1.0 mm.
Product Profile
SeriesFAZ connector
CategoryFFC/FPC Connectors
Applicable
FPC/FFC		FFC
FPC/FFC
thickness		0.3 mm
ZIF
Non-ZIF		ZIF
PC board
mounting		SMT
Mating
direction		Side entry, Top entry
Contact
surface side		Bottom contact, Upper contact, One side contact
LockSlider lock
StandardCSA, UL
Specification
Pitch1mm
Circuit8, 9, 11, 16, 20, 22, 24, 25, 26
Current
rating		1 A AC/DC
Voltage
rating		50 V AC/DC
Temperature
range		-25℃ to +85℃
Insulation
resistance		500MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 500 VAC for one minute.
Catalog Catalog
Shopping Site FAZ connector FAZ connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1T09FAZ-SMT-TFDownloadDownloadDownloadDownload
2T20FAZ-SMT-TFDownloadDownloadDownloadDownload
3T22FAZ-SMT-TFDownloadDownloadDownloadDownload
4T24FAZ-SMT-TFDownloadDownloadDownloadDownload
5T26FAZ-SMT-TFDownloadDownloadDownloadDownload
6S08FAZ-SM-TBDownloadDownloadDownload
7S09FAZ-SM-TBDownloadDownloadDownload
8S11FAZ-SM-TBDownloadDownloadDownload
9S16FAZ-SM-TBDownloadDownloadDownload
10S20FAZ-SM-TBDownloadDownloadDownload
11S25FAZ-SM-TBDownloadDownloadDownload
12S26FAZ-SM-TBDownloadDownloadDownload
[Notes]
"-"  in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells: Indicates products that are being prepared for listing.
