HOME > Product Profile

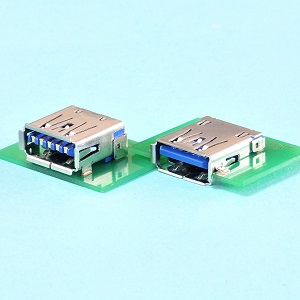

UB3 connector
pdf Catalog pdf Manual 2D3d 3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1UB3A-9R-D6C-112(HF)DownloadDownloadDownloadDownload
2UB3A-9R-D6C-333(HF)DownloadDownloadDownloadDownload
3UB3A-9R-D6C-414(HF)DownloadDownloadDownloadDownload
Shopping Site
Product Profile
SeriesUB3 connector
CategoryInterface Connection Connectors
TypeConformed to USB standard
Specification
Current ratingVBUS & GND circuits (No.1 & 4 circuits)/ 1.8A
Other circuits (No. 2, 3, 5 to 9 circuits)/ 0.25A
Voltage rating30V
Product description
The UB3 series is a Universal Serial Bus (USB) interface Type A connector receptacle that complies with the USB 3.0 standard.

UB3 connector
