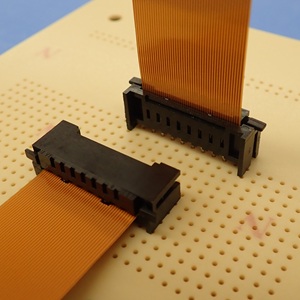

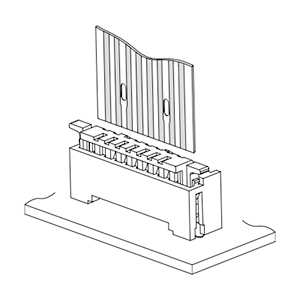

FDZ connector

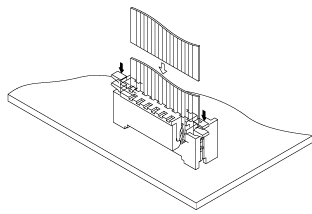

The FDZ connector is a Zero Insertion Force (ZIF) 2.54 mm pitch PCB connector that was developed to connect to FPC and membrane switch leads. Press the slider to securely lock the membrane switch lead after ZIF installation. Once locked, there is no misalignment or disconnection of the membrane switch lead, ensuring excellent connection reliability both mechanically and electrically.
Product Profile
SeriesFDZ connector
CategoryFFC/FPC Connectors
Applicable
FPC/FFC		FPC, Membrane
ZIF
Non-ZIF		ZIF
PC board
mounting		Through-hole
Mating
direction		Side entry, Top entry
Contact
surface side		Both sides contact
LockSlider lock
StandardCSA, UL
Specification
Pitch2.54 mm
Circuit5, 6, 8, 9, 10, 11, 12, 13, 17, 19
Current
rating		50 mA AC/DC
Voltage
rating		250 V AC/DC
Temperature
range		-40 ℃ to +85 ℃
Insulation
resistance		1,000 MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 1,200 VAC for one minute.
Catalog Catalog Manual Manual
FDZ connector FDZ connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
105FDZ-BT(S)DownloadDownloadDownloadDownload
206FDZ-BT(S)DownloadDownloadDownloadDownload
308FDZ-BT(S)DownloadDownloadDownloadDownload
409FDZ-BT(S)DownloadDownloadDownloadDownload
510FDZ-BT(S)DownloadDownloadDownloadDownload
611FDZ-BT(S)DownloadDownloadDownloadDownload
712FDZ-BT(S)DownloadDownloadDownloadDownload
813FDZ-BT(S)DownloadDownloadDownloadDownload
917FDZ-BT(S)DownloadDownloadDownloadDownload
1019FDZ-BT(S)DownloadDownloadDownloadDownload
1105FDZ-ST(S)DownloadDownloadDownloadDownload
1206FDZ-ST(S)DownloadDownloadDownloadDownload
1308FDZ-ST(S)DownloadDownloadDownloadDownload
1409FDZ-ST(S)DownloadDownloadDownloadDownload
1510FDZ-ST(S)DownloadDownloadDownloadDownload
1611FDZ-ST(S)DownloadDownloadDownloadDownload
1712FDZ-ST(S)DownloadDownloadDownloadDownload
1813FDZ-ST(S)DownloadDownloadDownloadDownload
1917FDZ-ST(S)DownloadDownloadDownloadDownload
[Notes]
"-"  in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells: Indicates products that are being prepared for listing.
* For any questions or requests, please contact JST.
