ADH Connector
pdf Catalog pdf Manual 2D3d 3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1ADHR-03V-HDownloadDownloadDownloadDownload
2ADHR-05V-S(HF)DownloadDownloadDownloadDownload
3BM02(3)B-ADHSS-GAN-ETBDownloadDownloadDownloadDownload
4BM03B-ADHKS-GAN-ETBDownloadDownloadDownloadDownload
5BM05B-ADHKS-GAN-ETB(HF)DownloadDownloadDownloadDownload
6SADH-002G-P0.2Download
7SADH-003G-P0.2Download
Shopping Site
Product Profile
SeriesADH Connector
CategoryCrimp Style Connectors (Wire-to-Board type)
TypeCrimp style, Compact type, Low-profile type
Crimp style, Disconnectable type
FeatureLow-profile
Specification
Pitch1.3mm
Current rating3A (Apply only 1A for the 3rd circuit of 5-circuit) (AWG#26)
Voltage rating30V
Product description

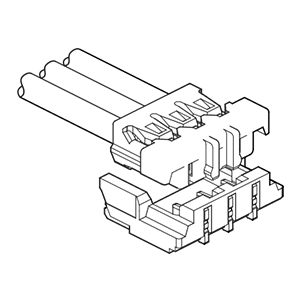

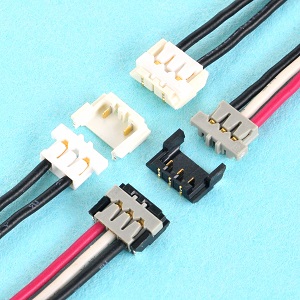

This ADH connector is compact and low profile type, height 1.9 mm and width 4.3 mm, 1.3 mm pitch wire-to-board connector.

ADH Connector
