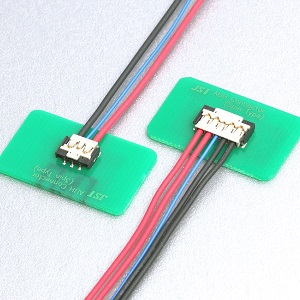

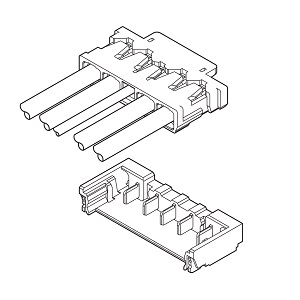

AUH Connector
The AUH series is an SMT, wire-to-board crimp style connector that combines both power supply and signal communication into one connector system. It features an exceptionally low profile with a mounting height of only 1.85 mm and an overall depth of 5.2 mm in the mated condition. For such a compact connector, it offers an impressive current rating of 5 A.
Product Profile
SeriesAUH Connector
CategoryCrimp Style Connectors (Wire-to-Board type)
PC board
mounting		SMT
Mating
direction		Top entry
Array
(Insertion part)		Single-row
LockFriction lock
HybridYes
StandardCSA, UL
OthersSide-Feed
Specification
Pitch1.7mm (Power supply circuit)
Circuit3, 5
Current
rating		1 A AC/DC (Signal circuit)
5 A AC/DC (Power supply circuit, AWG#22)
Voltage
rating		30 V AC/DC
Temperature
range		-25℃ to +85℃
Insulation
resistance		100MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 200 VAC for one minute.
Conductor
size		AWG #30,#28 (Signal circuit)
AWG #26,#24,#22 (Power supply circuit)
0.05mm2 to 0.08mm2 (Signal circuit)
0.13mm2 to 0.33mm2 (Power supply circuit)
Insulation O.D.φ0.5mm to φ0.63mm (Signal circuit)
φ0.98mm to φ1.16mm (Power supply circuit)
Catalog Catalog
Shopping Site AUH Connector AUH Connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1AUHR-03V-HDownloadDownloadDownloadDownload
2AUHR-05V-HDownloadDownloadDownloadDownload
3BM03B-AUHKS-GA-TBDownloadDownloadDownloadDownload
4BM05B-AUHKS-GA-TBDownloadDownloadDownloadDownload
5SACH-003G-P0.2Download
6SAUH-001G-M0.2DownloadDownloadDownloadDownload
