FCH Connector

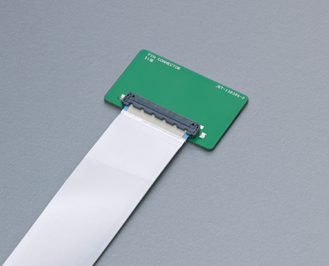

This is 0.5 mm pitch connector for FPC which has the exclusive GND contact and enables high-speed transmission with connecting to the impedance controlled FPC.
Adopting the auto lock mechanism that makes lock by performing the one action of snap-in-work, the workability improvement is realized.
Product Profile
SeriesFCH Connector
CategoryFFC/FPC Connectors
Applicable
FPC/FFC		FFC, FPC with cutout
FPC/FFC
thickness		0.33 mm
ZIF
Non-ZIF		Non-ZIF
PC board
mounting		SMT
Mating
direction		Side entry
Contact
surface side		Bottom contact
LockAuto lock
Transmission
Electromagnetic		EMI, High speed
Specification
Pitch0.5mm
Circuit10, 15, 20, 31, 41, 51
Current
rating		0.3 A AC/DC
Voltage
rating		50 V AC/DC
Temperature
range		-25℃ to +85℃
Insulation
resistance		500MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 200 VAC for one minute.
Catalog Catalog Manual Manual
Shopping Site FCH Connector FCH Connector

3D Data
ProductIGESSTEP3D-PDF
110FCH-RSM1-GA-TBDownloadDownloadDownload
215FCH-RSM1-GA-TBDownloadDownloadDownload
320FCH-RSM1-GA-TBDownloadDownloadDownload
431FCH-RSM1-GA-TBDownloadDownloadDownload
541FCH-RSM1-GA-TBDownloadDownloadDownload
651FCH-RSM1-GA-TBDownloadDownloadDownload
