PNI connector (High box type)
pdf Catalog 3d 3D Data
ProductIGESSTEPAcrobat3D
1BH02B-PNISK-1ADownloadDownloadDownload
2BH03B-PNISK-1ADownloadDownloadDownload
3BH04B-PNISK-1ADownloadDownloadDownload
4BH05B-PNISK-1ADownloadDownloadDownload
5BH06B-PNISK-1ADownloadDownloadDownload
6BH07B-PNISK-1ADownloadDownloadDownload
7BH08B-PNISK-1ADownloadDownloadDownload
8BH09B-PNISK-1ADownloadDownloadDownload
9BH10B-PNISK-1ADownloadDownloadDownload
10BH11B-PNISK-1ADownloadDownloadDownload
11BH12B-PNISK-1ADownloadDownloadDownload
12BH13B-PNISK-1ADownloadDownloadDownload
13BH14B-PNISK-1ADownloadDownloadDownload
14BH15B-PNISK-1ADownloadDownloadDownload
15PNIRP-02V-SDownloadDownloadDownload
16PNIRP-03V-SDownloadDownloadDownload
17PNIRP-04V-SDownloadDownloadDownload
18PNIRP-05V-SDownloadDownloadDownload
19PNIRP-06V-SDownloadDownloadDownload
20PNIRP-07V-SDownloadDownloadDownload
21PNIRP-08V-SDownloadDownloadDownload
22PNIRP-09V-SDownloadDownloadDownload
23PNIRP-10V-SDownloadDownloadDownload
24PNIRP-11V-SDownloadDownloadDownload
25PNIRP-12V-SDownloadDownloadDownload
26PNIRP-13V-SDownloadDownloadDownload
27PNIRP-14V-SDownloadDownloadDownload
28PNIRP-15V-SDownloadDownloadDownload
29PNIS-02VDownloadDownloadDownload
30PNIS-03VDownloadDownloadDownload
31PNIS-04VDownloadDownloadDownload
32PNIS-05VDownloadDownloadDownload
33PNIS-06VDownloadDownloadDownload
34PNIS-07VDownloadDownloadDownload
35PNIS-08VDownloadDownloadDownload
36PNIS-09VDownloadDownloadDownload
37PNIS-10VDownloadDownloadDownload
38PNIS-11VDownloadDownloadDownload
39PNIS-12VDownloadDownloadDownload
40PNIS-13VDownloadDownloadDownload
41PNIS-14VDownloadDownloadDownload
42PNIS-15VDownloadDownloadDownload
Shopping Site
Product Profile
SeriesPNI connector (High box type)
CategoryCrimp Style Connectors (Wire-to-Board type)
TypeCrimp style, High-box type, With locking device
Crimp style, Disconnectable type
Specification
Pitch2.0mm
Current rating3A
Voltage rating100V
Product description

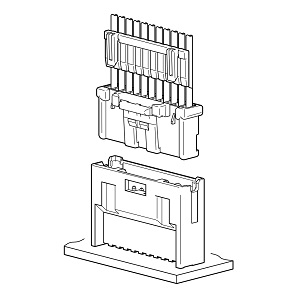

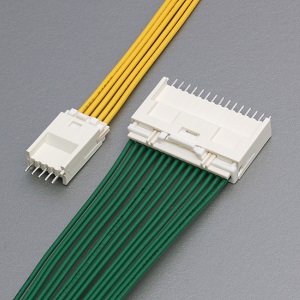

This is a board-to-wire connector with secure locking device that has been designed to 2mm pitch high box type, with a mounting height of 19.95mm (including retainer) and 6.65mm in depth. Low insertion force type contact is adopted and it provides excellent operability. Retainer is available as usage.

PNI connector (High box type)
