RTZ connector
pdf Catalog 3d 3D Data
ProductIGESSTEPAcrobat3D
1RTZP-04V-K1GSADownloadDownloadDownload
2RTZP-16V-K1GSADownloadDownloadDownload
3RTZP-20V-K1GSADownloadDownloadDownload
4RTZP-22V-K1GSADownloadDownloadDownload
5RTZP-28V-K1GSADownloadDownloadDownload
6RTZP-36V-K1GSADownloadDownloadDownload
7RTZR-04V-K-FBDownloadDownloadDownload
8RTZR-16V-K-FBDownloadDownloadDownload
9RTZR-20V-K-FBDownloadDownloadDownload
10RTZR-22V-K-FBDownloadDownloadDownload
11RTZR-28V-K-FBDownloadDownloadDownload
12RTZR-36V-K-FBDownloadDownloadDownload
Shopping Site
Product Profile
SeriesRTZ connector
CategoryCrimp Style Connectors (Wire-to-Board type)
TypeDrawer connector, Double-row
Crimp style, Disconnectable type
Specification
Pitch1.5mm
Current rating2.0A (AWG#24)
Voltage rating50V
Product description

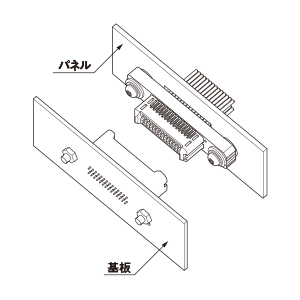

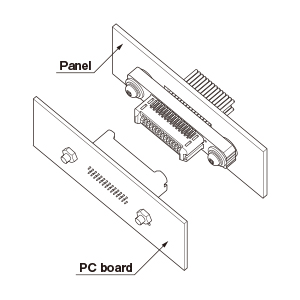

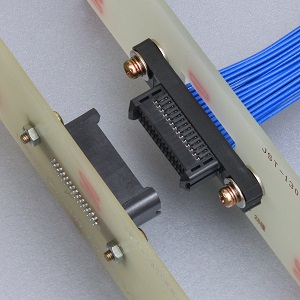

The RTZ connector is a drawer connector with floating mechanism which makes design of equipment easy. Correspond to the miniaturization of equipment by realizing the downsizing and the space saving with 1.5 mm pitch dual-row and the distance of 19.9 mm at the minimum between board and panel.

RTZ connector
