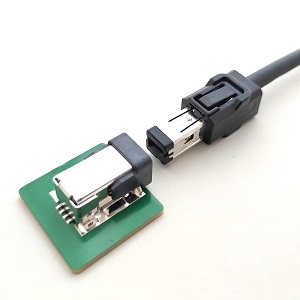

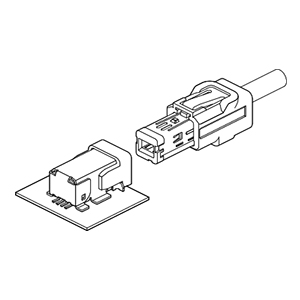

ASU connector (Wire-to-Board, Straight type)
ASU is a compact, high-speed transmission connector ideal for in-vehicle equipment such as Electronic Toll Collection Systems (ETC), navigation systems and Human Machine Interface (HMI).
Designed for SMT termination.
Product Profile
SeriesASU connector (Wire-to-Board, Straight type)
CategoryAutomotive Connectors
Sub
category		Wire-to-Board
PC board
mounting		SMT
Mating
direction		Side entry
LockSecure lock (Inner)
RetainerRetainer
Mating
assist		Keying
Transmission
Electromagnetic		Noise measure, High speed
ApplicationHMI device, Antenna comm. device
Specification
Circuit4
Current
rating		1 A AC/DC (AWG #28)
Voltage
rating		30 V AC/DC
Temperature
range		-40℃ to +105℃
Conductor
size		AWG #28,#26
0.08mm2 to 0.13mm2
Catalog Catalog Manual Manual
Shopping Site ASU connector (Wire-to-Board, Straight type) ASU connector (Wire-to-Board, Straight type)

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1ASU-4RASM-12T1-K1-TRDownloadDownloadDownloadDownload
2ASU-PCS4-3RPTDownload
3ASU-PHG4-KDownload
4ASU-PHN4-KDownload
5ASU-PRT-HDownload
6ASU-PS4-3RPT-1Download
7SASU-002GD-P0.15Download
