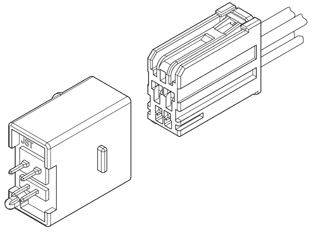

HSDP connector
0.64/1.5 Hybrid circuits connector
Product Profile
SeriesHSDP connector
CategoryAutomotive Connectors
Sub
category		Wire-to-Board
PC board
mounting		Through-hole
Mating
direction		Top entry
Terminal
size		0.64 terminal, 1.5 terminal
Array
(Insertion part)		Dual-row
LockSecure lock (Inner)
RetainerTPA
Mating
assist		Keying
HybridYes
Specification
Pitch2.54mm, 3.5mm (Power supply circuit)
Circuit4
Current
rating		5 A AC/DC (0.64 terminal)
14 A AC/DC (1.5 terminal)
Voltage
rating		14 V AC/DC
Temperature
range		-40℃ to +85℃
Insulation
resistance		100MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 1,000 VAC for one minute.
Conductor
size		0.3mm2 to 0.85mm2
Insulation O.D. to φ1.9mm
RemarksApplicable wire for 0.64 terminal: AVSS, CAVS, TXL, ISO
Catalog Catalog
Shopping Site HSDP connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1B04B-HSDP-2BHDownloadDownloadDownloadDownload
2B04B-HSDP-2DMDownloadDownloadDownloadDownload
3B04B-HSDP-2FSDownloadDownloadDownloadDownload
4HSDPPB-04-2BHDownloadDownloadDownloadDownload
5HSDPPB-04-2DMDownloadDownloadDownloadDownload
6HSDPPB-04-2FSDownloadDownloadDownloadDownload
7SAIT-A02T-M064Download
8SAIT-A03T-M064Download
