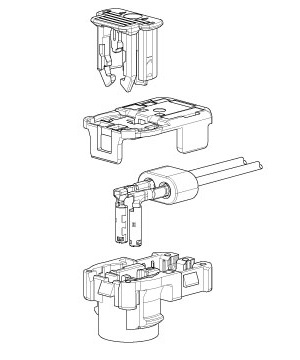

| Series | SQZ connector |
| Category | Automotive Connectors |
| Sub category | Squib |
| Lock | Inertia lock |
| Mating assist | CPA, Keying, Incomplete mating detection |
| Transmission Electromagnetic | Noise measure |
| Standard | ISO |
| Application | Air bag |
| Circuit | 2 |
| Current rating | 3 A AC/DC |
| Temperature range | -40℃ to +85℃ |
| Insulation resistance | 100MΩ min. |
| Conductor size | 0.3mm2 to 0.5mm2 |
| Insulation O.D. | φ1mm to φ1.6mm |
| Remarks | Applicable wire: AVSS, FLRY-A |
| Product | IGES | STEP | 3D-PDF | 2D-PDF | |
| 1 | 02SQZS-SGJ-1A-K_REFER_ASSY | Download | Download | Download | - |
| 2 | 02SQZS-SGJ-1B-LM_REFER_ASSY | Download | Download | Download | - |
| 3 | 02SQZS-SGJ-1C-Y_REFER_ASSY | Download | Download | Download | - |
| 4 | SSQSK-A03GJ-P-L | - | - | - | Download |
| 5 | SSQSK-A03GJ-P-R | - | - | - | Download |
| 6 | SQZR-02H-1A-K | - | - | - | Download |
| 7 | SQZR-02H-1B-LM | - | - | - | Download |
| 8 | SQZR-02H-1C-Y | - | - | - | Download |
| 9 | SQZL-02H-1A-Y | - | - | - | Download |
| 10 | SQXC-02H-1W-D | - | - | - | Download |
| 11 | SQZF-02-1A | - | - | - | Download |
