FHSY connector
pdf Catalog pdf Manual 2D3d 3D Data
ProductIGESSTEP3D-PDF
104FHSY-RSM1-GAN-TB(HF)(NN)DownloadDownloadDownload
205FHSY-RSM1-GAN-TBDownloadDownloadDownload
306FHSY-RSM1-GAN-TBDownloadDownloadDownload
408FHSY-RSM1-GAN-TBDownloadDownloadDownload
510FHSY-RSM1-GAN-TBDownloadDownloadDownload
611FHSY-RSM1-GAN-TBDownloadDownloadDownload
712FHSY-RSM1-GAN-TBDownloadDownloadDownload
814FHSY-RSM1-GAN-TBDownloadDownloadDownload
915FHSY-RSM1-GAN-TBDownloadDownloadDownload
1016FHSY-RSM1-GAN-TBDownloadDownloadDownload
1117FHSY-RSM1-GAN-TBDownloadDownloadDownload
1218FHSY-RSM1-GAN-TBDownloadDownloadDownload
1320FHSY-RSM1-GAN-TBDownloadDownloadDownload
1422FHSY-RSM1-GAN-TBDownloadDownloadDownload
1524FHSY-RSM1-GAN-TBDownloadDownloadDownload
1627FHSY-RSM1-GAN-TBDownloadDownloadDownload
1728FHSY-RSM1-GAN-TBDownloadDownloadDownload
Shopping Site
Product Profile
SeriesFHSY connector
CategoryFFC/FPC Connectors
TypeZero insertion force type, SMT type
FeatureLow-profile
Depth space saving
Specification
Pitch0.5mm
Current rating0.5A
Voltage rating50V
PC board mounting directionSide entry
Product description

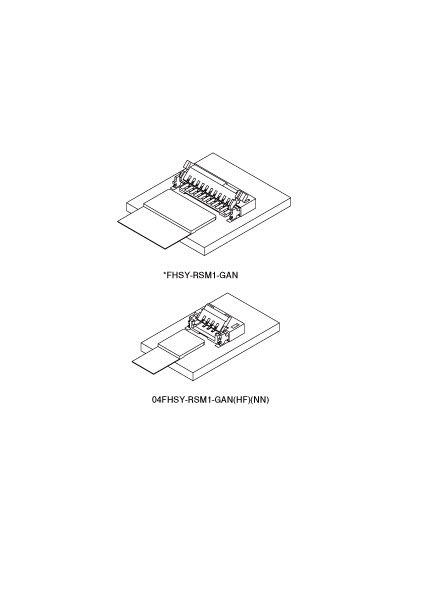

This ZIF type 'flip lock' FPC connector achieves a low-profile feature of a 0.9mm mounting height despite the thickness of the FPC being 0.3mm.

FHSY connector
