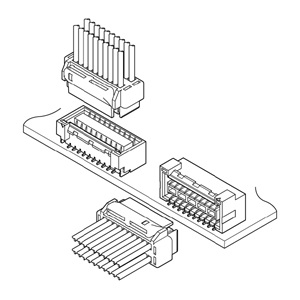

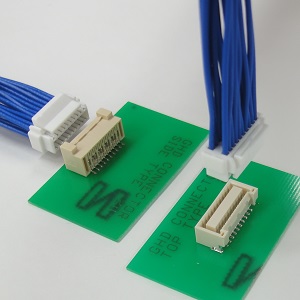

GHD connector (Tin-plated product)
pdf Catalog 2D3d 3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1BM10B-GHDS-TFDownloadDownloadDownloadDownload
2BM12B-GHDS-TFDownloadDownloadDownloadDownload
3BM14B-GHDS-TFDownloadDownloadDownloadDownload
4BM16B-GHDS-TFDownloadDownloadDownloadDownload
5BM18B-GHDS-TFDownloadDownloadDownloadDownload
6BM20B-GHDS-TFDownloadDownloadDownloadDownload
7BM22B-GHDS-TFDownloadDownloadDownloadDownload
8BM24B-GHDS-TFDownloadDownloadDownloadDownload
9BM26B-GHDS-TFDownloadDownloadDownloadDownload
10BM28B-GHDS-TFDownloadDownloadDownloadDownload
11BM30B-GHDS-TFDownloadDownloadDownloadDownload
12BM32B-GHDS-TFDownloadDownloadDownloadDownload
13BM34B-GHDS-TFDownloadDownloadDownloadDownload
14BM36B-GHDS-TFDownloadDownloadDownloadDownload
15BM38B-GHDS-TFDownloadDownloadDownloadDownload
16BM40B-GHDS-TFDownloadDownloadDownloadDownload
17GHDR-10V-S-1 (F)DownloadDownloadDownloadDownload
18GHDR-12V-S-1 (F)DownloadDownloadDownloadDownload
19GHDR-14V-S-1 (F)DownloadDownloadDownloadDownload
20GHDR-16V-S-1 (F)DownloadDownloadDownloadDownload
21GHDR-18V-S-1 (F)DownloadDownloadDownloadDownload
22GHDR-20V-S-1 (F)DownloadDownloadDownloadDownload
23GHDR-22V-S-1 (F)DownloadDownloadDownloadDownload
24GHDR-24V-S-1 (F)DownloadDownloadDownloadDownload
25GHDR-26V-S-1 (F)DownloadDownloadDownloadDownload
26GHDR-28V-S-1 (F)DownloadDownloadDownloadDownload
27GHDR-30V-S-1 (F)DownloadDownloadDownloadDownload
28GHDR-32V-S-1 (F)DownloadDownloadDownloadDownload
29GHDR-34V-S-1 (F)DownloadDownloadDownloadDownload
30GHDR-36V-S-1 (F)DownloadDownloadDownloadDownload
31GHDR-38V-S-1 (F)DownloadDownloadDownloadDownload
32GHDR-40V-S-1 (F)DownloadDownloadDownloadDownload
33SGHD-002T-C0.2ADownloadDownloadDownloadDownload
34SGHD-003T-C0.2ADownloadDownloadDownloadDownload
35SM10B-GHDS-A-TFDownloadDownloadDownloadDownload
36SM12B-GHDS-A-TFDownloadDownloadDownloadDownload
37SM14B-GHDS-A-TFDownloadDownloadDownloadDownload
38SM16B-GHDS-A-TFDownloadDownloadDownloadDownload
39SM18B-GHDS-A-TFDownloadDownloadDownloadDownload
40SM20B-GHDS-A-TFDownloadDownloadDownloadDownload
41SM22B-GHDS-A-TFDownloadDownloadDownloadDownload
42SM24B-GHDS-A-TFDownloadDownloadDownloadDownload
43SM26B-GHDS-A-TFDownloadDownloadDownloadDownload
44SM28B-GHDS-A-TFDownloadDownloadDownloadDownload
45SM30B-GHDS-A-TFDownloadDownloadDownloadDownload
46SM32B-GHDS-A-TFDownloadDownloadDownloadDownload
47SM34B-GHDS-A-TFDownloadDownloadDownloadDownload
48SM36B-GHDS-A-TFDownloadDownloadDownloadDownload
49SM38B-GHDS-A-TFDownloadDownloadDownloadDownload
50SM40B-GHDS-A-TFDownloadDownloadDownloadDownload
Shopping Site
Product Profile
SeriesGHD connector (Tin-plated product)
CategoryCrimp Style Connectors (Wire-to-Board type)
TypeCrimp style, Double-row, With secure locking device
Disconnectable type
FeatureWith secure locking device
Specification
Pitch1.25mm
Current rating1.25A (AWG#26)
1.0A (AWG#28)
0.8A (AWG#30)
Voltage rating50V
Product description
In order to correspond to the various high-density PC board designing, this GHD connector is designed as 1.25mm pitch double row type connector.
Provide a full lineup of 10 to 40 circuits for top and side entry types. (8 circuits is currently planned.)
Its operability is very well, in spite of the small size with tin-plated.

GHD connector (Tin-plated product)
