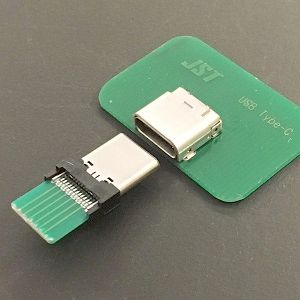

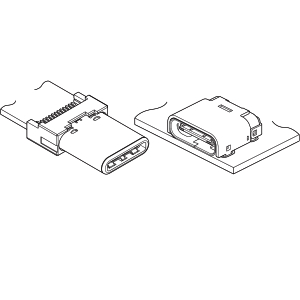

UBC connector
The UBC connector is an USB Type-C compliant interface connector capable of supplying up to 100 W of power. The receptacle is USB4 compliant with a data transmission rate of up to 40 Gbps. Reversible structure that can be inserted regardless of front or back orientation of the plug.
Product Profile
SeriesUBC connector
CategoryInterface Connection Connectors
PC board
mounting		Through-hole, SMT
Mating
direction		Side entry
Contact
surface side		Reversible
Transmission
Electromagnetic		High speed
StandardUSB4 Type-C
OthersHalogen-free
Specification
Current
rating		1.25 A DC (Vbus (A4, A9, B4, B9), GND (A1, A12, B1, B12), CC1 (A5), CC2 (B5))
0.25 A DC (Other circuits)
Voltage
rating		20 V AC
Temperature
range		-25℃ to +85℃
Insulation
resistance		100MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 100 VAC for one minute.
Catalog Catalog Manual Manual
Shopping Site UBC connector UBC connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1UBC-P-514-7B(HF)DownloadDownloadDownload
2UBC-R1AB12-56C-7ATS(HF)DownloadDownloadDownloadDownload
3UBC-R1B12-56C-7ATS(HF)DownloadDownloadDownloadDownload
4UBC-R9AB12-56C-7ATS(HF)DownloadDownloadDownloadDownload
