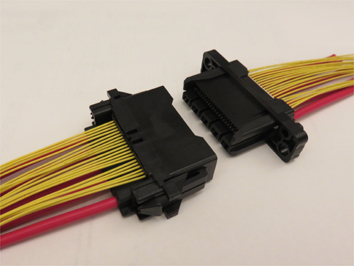

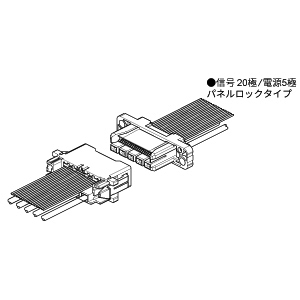

RVE connector
This is a hybrid-type drawer connector designed for unit-to-unit connections which can absorb misalignment and small movements between units. It features a highly reliable dual-contact structure to ensure stable connectivity. It is ideal for applications where only a few number of mating cycles is required.
Product Profile
SeriesRVE connector
CategoryWire-to-Wire Connectors
Panel

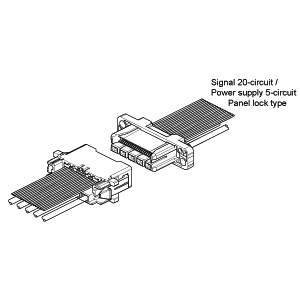

mounting		Screw lock, Panel lock
Array
(Insertion part)		Single-row, Dual-row
Mating
assist		Absorbing of misalignment, Drawer
HybridYes
StandardTÜV, UL
Specification
Pitch1.5mm, 7.5mm (Power supply circuit)
Circuit7, 11, 20
Current
rating		1 A AC/DC (Signal circuit, AWG #26)
15 A AC/DC (Power supply circuit, AWG #14)
Voltage
rating		50 V AC/DC (Signal circuit)
250 V AC/DC (Power supply circuit)
Temperature
range		-25℃ to +85℃
Insulation
resistance		500MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 500 VAC for one minute.
Conductor
size		AWG #28,#26 (Signal circuit)
AWG #24,#22,#20,#18,#16,#14 (Power supply circuit)
0.08mm2 to 0.13mm2 (Signal circuit)
0.2mm2 to 2mm2 (Power supply circuit)
Insulation O.D.φ0.7mm to φ1.1mm (Signal circuit)
φ1.4mm to φ3.6mm (Power supply circuit)
RemarksApplicable signal connector: CZ, CZH connector
Catalog Catalog Manual Manual
Shopping Site RVE connector RVE connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
107CZ-6HDownloadDownloadDownloadDownload
207S3R-RVE-K-RF1.2T-SDownloadDownloadDownloadDownload
311CZ-6HDownloadDownloadDownloadDownload
411S4R-RVE-K-NT-4GDownloadDownloadDownloadDownload
520CZ-6HDownloadDownloadDownloadDownload
620S5R-RVE-K-NT-1GDownloadDownloadDownloadDownload
7CZHR-07V-SDownloadDownloadDownloadDownload
8CZHR-11V-SDownloadDownloadDownloadDownload
9CZHR-20V-SDownloadDownloadDownloadDownload
10RVEP-07S3-K-RA-SDownloadDownloadDownloadDownload
11RVEP-11S4-K-RDownloadDownloadDownloadDownload
12RVEP-20S5-K-NDownloadDownloadDownloadDownload
13RVEP-20S5-K-RADownloadDownloadDownloadDownload
14RWMYP-07-KDownloadDownloadDownloadDownload
15RWMYP-11-KDownloadDownloadDownloadDownload
16RWMYP-20-KDownloadDownloadDownloadDownload
17SCZH-002T-P0.5DownloadDownloadDownloadDownload
18SRICM-01T-S0.6Download
19SRICM-61T-S0.6Download
20SRWF-01T-M0.6Download
21SRWF-61T-M0.6Download
22SRWMP-002T-M0.9Download
