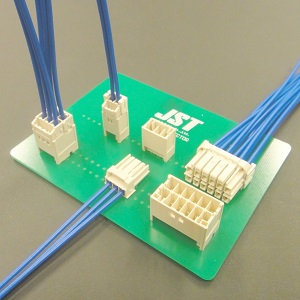

BNI connector
pdf Catalog pdf Manual 2D3d 3D Data Shopping Site
Product Profile
SeriesBNI connector
CategoryCrimp Style Connectors (Wire-to-Board type)
TypeInertial lock structure
FeatureWith an inertia lock mechanism
Specification
Pitch3.3mm
Current rating4A (AWG#20)
Voltage rating300V
Product description

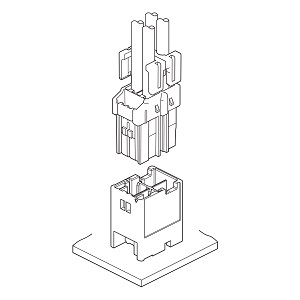

This is a 3.3 mm pitch wire-to-board connector with a mechanism to prevent incomplete mating.
Three different key patterns per number of circuits in the same model are provided to prevent incorrect mating when multiple pieces of connector are used in close proximity.

BNI connector
