FAH connector (Screw Lock Type)
pdf Catalog 2D3d 3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
102FAH-FAGDDownloadDownloadDownloadDownload
202FAH-MAGDDownloadDownloadDownloadDownload
3FAH-MC02V-KDownload
Shopping Site
Product Profile
SeriesFAH connector (Screw Lock Type)
CategoryWire-to-Wire Connectors
Type
FeatureHigh electric current capacity
Specification
Pitch16.0mm
Current rating90A (AWG#4)
Voltage rating600V
Product description
This is a 2-circuit wire-to-wire connector with a 90 A maximum current rating. The connector housing comes pre-loaded with contacts. The wires are terminated by ring tongue terminals which are mounted to the connector by screw. The ring tongue terminals can be replaced by busbars.

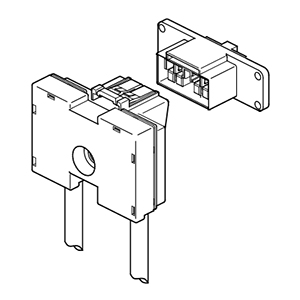

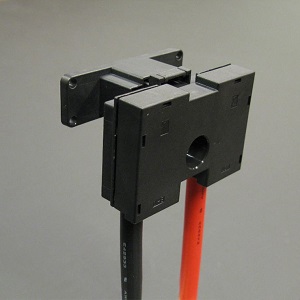

FAH connector (Screw Lock Type)
