ZND connector (Wire-to-Board)
pdf Catalog pdf Manual 2D3d 3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1BM04B-ZNDSS-A-TFDownloadDownloadDownload
2BM06B-ZNDSS-A-TFDownloadDownloadDownload
3BM08B-ZNDSS-A-TFDownloadDownloadDownload
4BM10B-ZNDSS-A-TFDownloadDownloadDownload
5BM12B-ZNDSS-A-TFDownloadDownloadDownload
6BM14B-ZNDSS-A-TFDownloadDownloadDownload
7BM16B-ZNDSS-A-TFDownloadDownloadDownload
8BM18B-ZNDSS-A-TFDownloadDownloadDownload
9BM20B-ZNDSS-A-TFDownloadDownloadDownload
10BM22B-ZNDSS-A-TFDownloadDownloadDownload
11BM24B-ZNDSS-A-TFDownloadDownloadDownload
12BM26B-ZNDSS-A-TFDownloadDownloadDownload
13BM28B-ZNDSS-A-TFDownloadDownloadDownload
14BM30B-ZNDSS-A-TFDownloadDownloadDownload
15BM32B-ZNDSS-A-TFDownloadDownloadDownload
16BM34B-ZNDSS-A-TFDownloadDownloadDownload
17BM36B-ZNDSS-A-TFDownloadDownloadDownload
18SZND-002T-P0.5DownloadDownloadDownloadDownload
19ZNDP-04V-A-SDownloadDownloadDownload
20ZNDP-06V-A-SDownloadDownloadDownload
21ZNDP-08V-A-SDownloadDownloadDownload
22ZNDP-10V-A-SDownloadDownloadDownload
23ZNDP-12V-A-SDownloadDownloadDownload
24ZNDP-14V-A-SDownloadDownloadDownload
25ZNDP-16V-A-SDownloadDownloadDownload
26ZNDP-18V-A-SDownloadDownloadDownload
27ZNDP-20V-A-SDownloadDownloadDownload
28ZNDP-22V-A-SDownloadDownloadDownload
29ZNDP-24V-A-SDownloadDownloadDownload
30ZNDP-26V-A-SDownloadDownloadDownload
31ZNDP-28V-A-SDownloadDownloadDownload
32ZNDP-30V-A-SDownloadDownloadDownload
33ZNDP-32V-A-SDownloadDownloadDownload
34ZNDP-34V-A-SDownloadDownloadDownload
35ZNDP-36V-A-SDownloadDownloadDownload
36ZNDS-04V-KDownloadDownloadDownload
37ZNDS-06V-KDownloadDownloadDownload
38ZNDS-08V-KDownloadDownloadDownload
39ZNDS-10V-KDownloadDownloadDownload
40ZNDS-12V-KDownloadDownloadDownload
41ZNDS-14V-KDownloadDownloadDownload
42ZNDS-16V-KDownloadDownloadDownload
43ZNDS-18V-KDownloadDownloadDownload
44ZNDS-20V-KDownloadDownloadDownload
45ZNDS-22V-KDownloadDownloadDownload
46ZNDS-24V-KDownloadDownloadDownload
47ZNDS-26V-KDownloadDownloadDownload
48ZNDS-28V-KDownloadDownloadDownload
49ZNDS-30V-KDownloadDownloadDownload
50ZNDS-32V-KDownloadDownloadDownload
51ZNDS-34V-KDownloadDownloadDownload
52ZNDS-36V-KDownloadDownloadDownload
Shopping Site
Product Profile
SeriesZND connector (Wire-to-Board)
CategoryCrimp Style Connectors (Wire-to-Board type)
TypeCrimp style, With secure locking device
FeatureWith secure locking device
Specification
Pitch1.5mm
Current rating2A (AWG#24)
Voltage rating100V
Product description

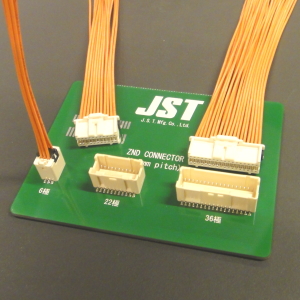

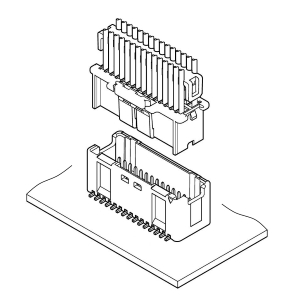

This connector is a 1.5 mm pitch, dual-row SMT mountable connector with secure locking mechanism for high-density board designs and is compatible with the potting process.
Excellent mating feeling ensures reliable mating operation.

ZND connector (Wire-to-Board)
