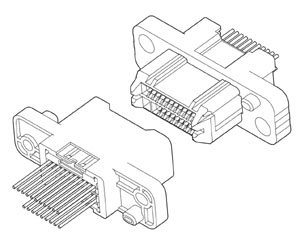

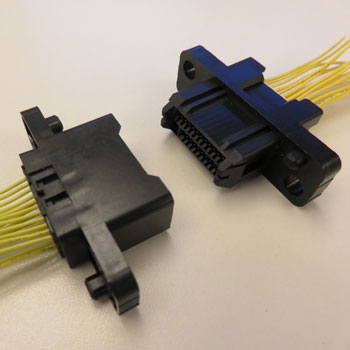

RWM connector
This is a dual-row, signal drawer connector for unit connection. It features a mechanism to absorb misalignment between units and is ideal for locations with few insertion and withdrawal cycles.
Product Profile
SeriesRWM connector
CategoryWire-to-Wire Connectors
Wiring
type		Crimp style
Panel
mounting		Screw lock
Array
(Insertion part)		Dual-row
Mating
assist		Absorbing of misalignment, Drawer
StandardTÜV, UL
Specification
Pitch1.5mm
Circuit20
Current
rating		1 A AC/DC (Signal circuit, AWG #26)
Voltage
rating		50 V AC/DC (Signal circuit)
Temperature
range		-25℃ to +85℃
Insulation
resistance		500MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 500 VAC for one minute.
Conductor
size		AWG #28,#26
0.08mm2 to 0.13mm2
Insulation O.D.φ0.78mm to φ1.1mm
Catalog Catalog
Shopping Site RWM connector RWM connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
109CZ-6HDownloadDownloadDownloadDownload
211CZ-6HDownloadDownloadDownloadDownload
320S0R-RWM-KTDownload
4CZHR-09V-SDownloadDownloadDownloadDownload
5CZHR-11V-SDownloadDownloadDownloadDownload
6RWMP-20S0-KDownload
7RWMYP-09-KDownloadDownloadDownloadDownload
8RWMYP-11-KDownloadDownloadDownloadDownload
9SCZH-002T-P0.5Download
10SRWMP-002T-M0.9Download
