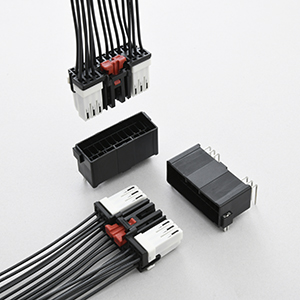

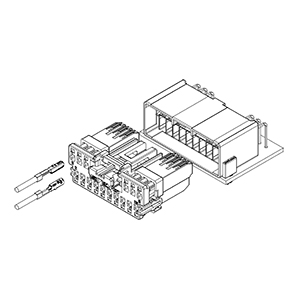

TLDR connector
0.64 low profile automotive connectors for High voltage and low current applications
Product Profile
SeriesTLDR connector
CategoryAutomotive Connectors
Sub
category		Wire-to-Board
PC board
mounting		Through-hole
Mating
direction		Side entry, Top entry
Terminal
size		0.64 terminal
Array
(Insertion part)		Dual-row staggered
LockSecure lock (Inner)
RetainerTLC
Mating
assist		CPA
Specification
Pitch3.5mm
Circuit12, 16
Current
rating		5 A DC
Voltage
rating		600 V
Temperature
range		-40℃ to +125℃
Conductor
size		AWG #22,#20
0.35mm2 to 0.5mm2
Catalog Catalog
TLDR connector TLDR connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1S12B-TLDR-2EDDownloadDownloadDownloadDownload
2TLDRPB-12-2EDDownloadDownloadDownloadDownload
3S16B-TLDR-2AK DownloadDownloadDownloadDownload
4S16B-TLDR-2BHDownloadDownloadDownloadDownload
5TLDRPB-16-2AKDownloadDownloadDownloadDownload
6TLDRPB-16-2BHDownloadDownloadDownloadDownload
[Notes]
"-"  in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells: Indicates products that are being prepared for listing.
* For any questions or requests, please contact JST.
