FHHS connector

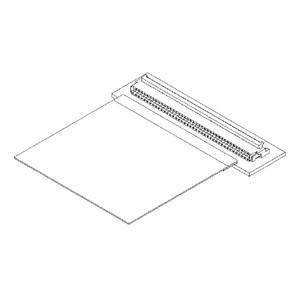

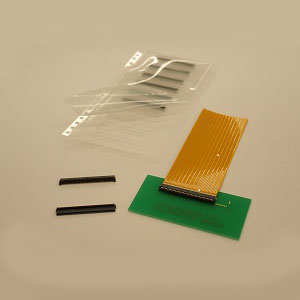

This is 0.5 mm pitch, back flip type FPC connector for 0.3 mm thick FPC.
Realized space saving with thin of 1.0 mm mounting height. Considering the transmission of various high-speed interfaces such as ThunderboltTM , the differential impedance shall be matched at 90Ω.
Product Profile
SeriesFHHS connector
CategoryFFC/FPC Connectors
Applicable
FPC/FFC		FPC
FPC/FFC
thickness		0.3 mm
ZIF
Non-ZIF		ZIF
PC board
mounting		SMT
Mating
direction		Side entry
LockBack flip lock
Transmission
Electromagnetic		High speed
OthersHalogen-free
Specification
Pitch0.5mm
Circuit40
Current
rating		0.5 A AC/DC
Voltage
rating		50 V AC/DC
Temperature
range		-25℃ to +85℃
Insulation
resistance		100MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 200 VAC for one minute.
Catalog Catalog
Shopping Site FHHS connector FHHS connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
140FHHS-SM1-GAN-T-ETF(HF)DownloadDownloadDownloadDownload
