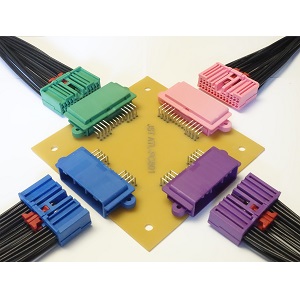

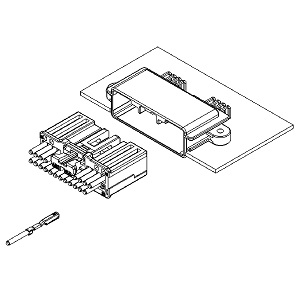

ATLF connector
21 Circuits 0.64 Unsealed Connector System with CPA and ISL TPA.
Ultra low profile design for high density PCB placement with multiple key codes.
Product Profile
SeriesATLF connector
CategoryAutomotive Connectors
Sub
category		Wire-to-Board
PC board
mounting		Through-hole, Screw lock
Mating
direction		Side entry
Terminal
size		0.64 terminal
Array
(Insertion part)		Dual-row
LockSecure lock (Inner)
RetainerTPA
Mating
assist		CPA, Keying
Specification
Pitch2.54mm
Circuit21
Current
rating		5 A DC
Voltage
rating		14 V DC
Temperature
range		-40℃ to +125℃
Insulation
resistance		100MΩ min.
Conductor
size		0.3mm2 to 0.75mm2
Insulation O.D. to φ1.9mm
Catalog Catalog
Shopping Site ATLF connector ATLF connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1ATLFPB-21-2GSDownloadDownloadDownloadDownload
2ATLFPB-21-2HKDownloadDownloadDownloadDownload
3ATLFPB-21-2JHDownloadDownloadDownloadDownload
4ATLFPB-21-2KEDownloadDownloadDownloadDownload
5ATLFPB-21-2LMDownloadDownloadDownloadDownload
6ATLFPB-21-2MPKDownloadDownloadDownloadDownload
7ATLFPB-21-2NPDownloadDownloadDownloadDownload
8ATLFPB-21-2PNDownloadDownloadDownloadDownload
9ATLFPB-21-2RDDownloadDownloadDownloadDownload
10S21B-ATLF-2GSDownloadDownloadDownloadDownload
11S21B-ATLF-2HKDownloadDownloadDownloadDownload
12S21B-ATLF-2JHDownloadDownloadDownloadDownload
13S21B-ATLF-2KEDownloadDownloadDownloadDownload
14S21B-ATLF-2LMDownloadDownloadDownloadDownload
15S21B-ATLF-2MPKDownloadDownloadDownloadDownload
16S21B-ATLF-2NPDownloadDownloadDownloadDownload
17S21B-ATLF-2PNDownloadDownloadDownloadDownload
18S21B-ATLF-2RDDownloadDownloadDownloadDownload
19SAIT-A02T-M064Download
20SAIT-A03T-M064Download
