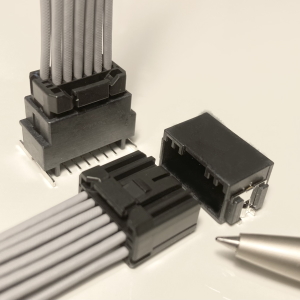

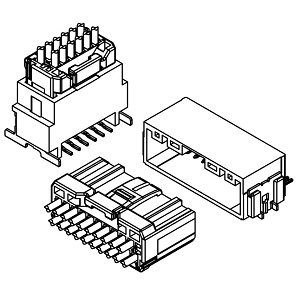

CPM connector
Miniaturized and low profile surface mounting type connector for automotive. 0.50 terminal with 2.0 mm pitch realized its miniaturization.
Product Profile
SeriesCPM connector
CategoryAutomotive Connectors
Sub
category		Wire-to-Board
PC board
mounting		SMT
Mating
direction		Side entry, Top entry
Terminal
size		0.5 terminal
Array
(Insertion part)		Dual-row staggered
LockSecure lock (Inner)
RetainerRetainer
Mating
assist		Keying
Specification
Pitch2mm
Circuit8, 12, 16, 20
Current
rating		3 A AC/DC
Temperature
range		-40℃ to +125℃
Insulation
resistance		100MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 1,000 VAC for one minute.
Conductor
size		AWG #22
0.3mm2
Insulation O.D. to φ1.5mm
RemarksApplicable wire: AESSX, UL3265
Catalog Catalog Manual Manual
Shopping Site CPM connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
108CPM-BVK-2-AADownloadDownloadDownloadDownload
212CPM-BVK-2-AADownloadDownloadDownloadDownload
316CPM-BVK-2-AADownloadDownloadDownloadDownload
420CPM-BVK-2-AADownloadDownloadDownloadDownload
5BM08B-CPMK-2AA-TBDownloadDownloadDownloadDownload
6BM12B-CPMK-2AA-TBDownloadDownloadDownloadDownload
7SM08B-CPMK-2AA-TBDownloadDownloadDownloadDownload
8SM12B-CPMK-2AA-TBDownloadDownloadDownloadDownload
9SM16B-CPMK-2AA-TBDownloadDownloadDownloadDownload
10SM20B-CPMK-2AA-TBDownloadDownloadDownloadDownload
11SMEC-A021T-M0.5Download
