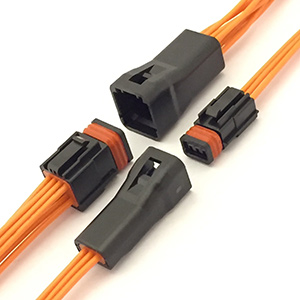

ZWP connector

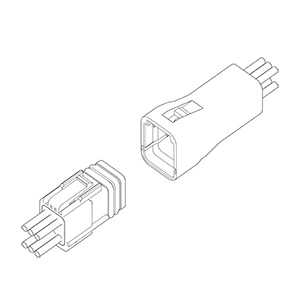

This is the waterproof type 1.5 mm pitch wire-to-wire connector incorporating the inner lock structure.
Product Profile
SeriesZWP connector
CategoryWire-to-Wire Connectors
Wiring
type		Crimp style
Panel
mounting		Free-hanging
Array
(Insertion part)		Single-row, Dual-row
LockSecure lock (Inner), Secure lock (Center)
WaterproofIPX7
StandardIEC 60529 IPX7
Specification
Pitch1.5mm
Circuit2, 3, 4, 5, 6, 8
Current
rating		2 A AC/DC (AWG #24)
Voltage
rating		50 V AC/DC
Temperature
range		-25℃ to +85℃
Insulation
resistance		500MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 500 VAC for one minute.
Conductor
size		AWG #28,#26,#24
0.08mm2 to 0.21mm2
Insulation O.D.φ0.9mm to φ1.2mm
Catalog Catalog
Shopping Site ZWP connector ZWP connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
102R-ZWPV-KNNDownloadDownloadDownloadDownload
202T-ZWPV-KNNDownloadDownloadDownloadDownload
303R-ZWPV-KNNDownloadDownloadDownloadDownload
403T-ZWPV-KNNDownloadDownloadDownloadDownload
504R-ZWPV-W-KNNDownloadDownloadDownloadDownload
604T-ZWPV-W-KNNDownloadDownloadDownloadDownload
705R-ZWPV-W-KNNDownloadDownloadDownloadDownload
805T-ZWPV-W-KNNDownloadDownloadDownloadDownload
906R-ZWPV-W-KNNDownloadDownloadDownloadDownload
1006T-ZWPV-W-KNNDownloadDownloadDownloadDownload
1108R-ZWPV-W-KNNDownloadDownloadDownloadDownload
1208T-ZWPV-W-KNNDownloadDownloadDownloadDownload
13SZWPR-002T-C0.4DownloadDownloadDownloadDownload
14SZWPT-002T-C0.4DownloadDownloadDownloadDownload
