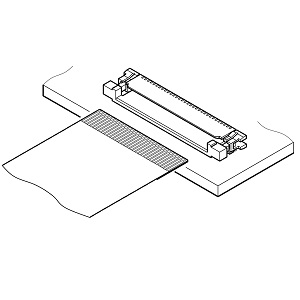

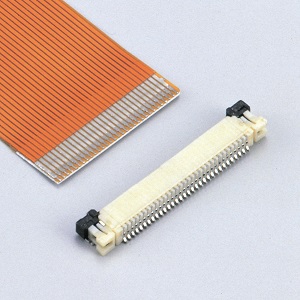

FKZ connector
With a fine pitch of 0.5 mm, this space-saving, compact FPC connector, with its ZIF (Zero Insertion Force) mechanism, effectively prolongs the number of mating cycles, thereby extending the life of the connector. Both normal and reverse connection types are available.
Product Profile
SeriesFKZ connector
CategoryFFC/FPC Connectors
Applicable
FPC/FFC		FPC
FPC/FFC
thickness		0.3 mm
ZIF
Non-ZIF		ZIF
PC board
mounting		SMT
Mating
direction		Side entry
Contact
surface side		Bottom contact, Upper contact
LockSlider lock
StandardCSA, UL
Specification
Pitch0.5mm
Circuit5, 6, 8, 12, 13, 14, 16, 18, 19, 20, 22, 24, 26,
27, 28, 30, 32
Current
rating		0.5 A AC/DC
Voltage
rating		50 V AC/DC
Temperature
range		-25℃ to +85℃
Insulation
resistance		100MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 200 VAC for one minute.
Catalog Catalog Manual Manual
Shopping Site FKZ connector FKZ connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
105FKZ-RSM1-1-TBDownload
205FKZ-SM1-1-TBDownload
306FKZ-RSM1-1-TBDownload
406FKZ-SM1-1-TBDownload
508FKZ-RSM1-1-TBDownload
608FKZ-SM1-1-TBDownloadDownloadDownloadDownload
712FKZ-RSM1-1-TBDownload
812FKZ-SM1-1-TBDownload
913FKZ-RSM1-1-TBDownload
1014FKZ-RSM1-1-TBDownload
1114FKZ-SM1-1-TBDownload
1216FKZ-RSM1-1-TBDownload
1316FKZ-SM1-1-TBDownload
1418FKZ-RSM1-1-TBDownload
1518FKZ-SM1-1-TBDownloadDownloadDownloadDownload
1619FKZ-RSM1-1-TBDownload
1719FKZ-SM1-1-TBDownload
1820FKZ-RSM1-1-TBDownload
1920FKZ-SM1-1-TBDownload
2022FKZ-RSM1-1-TBDownload
2122FKZ-SM1-1-TBDownload
2224FKZ-RSM1-1-TBDownload
2324FKZ-SM1-1-TBDownloadDownloadDownloadDownload
2426FKZ-RSM1-2-TBDownload
2526FKZ-SM1-2-TBDownload
2627FKZ-RSM1-2-TBDownload
2727FKZ-SM1-2-TBDownload
2828FKZ-RSM1-2-TBDownload
2928FKZ-SM1-2-TBDownload
3030FKZ-RSM1-2-TBDownload
3130FKZ-SM1-2-TBDownload
3232FKZ-RSM1-2-TBDownload
3332FKZ-SM1-2-TBDownload
