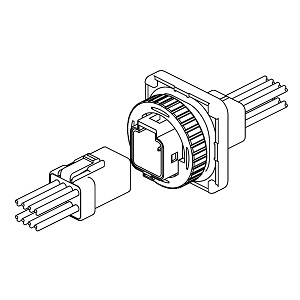

JWPF connector (Wire-to-Wire, Panel lock type)
pdf Catalog pdf Manual 2D3d 3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
108R-JWPF-VSLE-DDownloadDownloadDownloadDownload
208TP-JWPF-VKLE-DDownloadDownloadDownloadDownload
308TP-JWPF-VSLE-D-ADownloadDownloadDownloadDownload
408TPC-JWPF-VK-DDownloadDownloadDownloadDownload
5SWPR-001T-P025Download
6SWPT-001T-P025Download
Shopping Site
Product Profile
SeriesJWPF connector (Wire-to-Wire, Panel lock type)
CategoryWire-to-Wire Connectors
TypeCrimp style, With panel locking device
Crimp style, Waterproof connector
FeatureWith secure locking device
Waterproof
Specification
Pitch2.0mm
Current rating3A (AWG#22)
Voltage rating100V
Product description

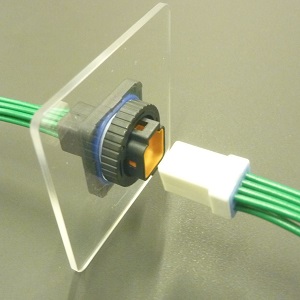

This is a panel lock type 2.0 mm pitch wire-to-wire connector with water ingress protection with an IPX7 rating per IEC 60529 (grade 7 per JIS C 0920), suitable for use for the place of which waterproof is required.

JWPF connector (Wire-to-Wire, Panel lock type)
