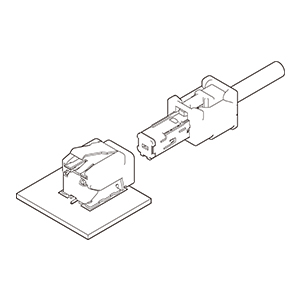

EA2 connector (Side entry type with GND spring)
pdf Catalog 2D3d 3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1EA2-1RASG-12T100-K1-TRDownload
2EA2-PHG-1KDownload
3EA2-PHN-2KDownload
4EA2-PRT-2HDownload
5EA2-SCS542Download
6EA2-SSP3RPTDownload
Shopping Site
Product Profile
SeriesEA2 connector (Side entry type with GND spring)
CategoryAutomotive Connectors
TypeSpace saving
High speed data transmission & High frequency
FeatureLow-profile
With secure locking device
High-speed transmission
Specification
Current rating1A
Voltage rating250V
PC board mounting directionSide entry type
Product description
This is compact high-frequency signal connector with enhanced GND performance, suitable for in-vehicle equipment with antenna communication (GPS, ETC/DSRC, Wi-Fi, Bluetooth). It is also suitable for coaxial video signal transmission in combination with cable-side connectors for noise suppression. It is surface mount technology (SMT) compatible products.

EA2 connector (Side entry type with GND spring)
