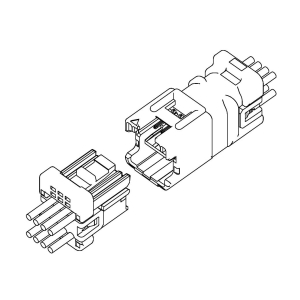

| Series | ZIM connector |
| Category | Wire-to-Wire Connectors |
| Wiring type | Crimp style |
| Panel mounting | Free-hanging |
| Array (Insertion part) | Dual-row |
| Lock | Secure lock (Inner), Secure lock (Center), Inertia lock |
| Retainer | Retainer |
| Mating assist | Keying |
| Standard | UL |
| Pitch | 1.5 mm |
| Circuit | 8, 10 |
| Current rating | 2 A AC/DC (AWG #24) |
| Voltage rating | 100 V AC/DC |
| Temperature range | -25 ℃ to +85 ℃ |
| Insulation resistance | 500 MΩ min. |
| Withstanding voltage | There shall be no breakdown or flashover while applying 500 VAC for one minute. |
| Conductor size | AWG # 28 , # 26 , # 24 0.08 mm2 to 0.21 mm2 |
| Insulation O.D. | φ 0.76 mm to φ 1.3 mm |
| Product | IGES | STEP | 3D-PDF | 2D-PDF | |
| 1 | SZND-002T-P0.5 | - | - | - | Download |
| 2 | SZNDM-002T-P0.5 | - | - | - | Download |
| 3 | ZIMRP-08V-A-S | Download | Download | Download | |
| 4 | ZIMRP-10V-A-S | Download | Download | Download | |
| 5 | ZIMRR-08VF-A-S | Download | Download | Download | |
| 6 | ZIMRR-10VF-A-S | Download | Download | Download | |
| 7 | ZNDS-08V-K | Download | Download | Download | Download |
| 8 | ZNDS-10V-K | Download | Download | Download | Download |
