HVM connector
pdf Catalog 2D3d 3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
106HVM-BC-1A-D-BDownloadDownloadDownload
206HVM-BC-1A-K-ADownloadDownloadDownload
310HVM-BC-1A-D-BDownloadDownloadDownloadDownload
410HVM-BC-1A-K-ADownloadDownloadDownloadDownload
5SM06B-HVMK-1A-ADownloadDownloadDownload
6SM06B-HVMK-1A-BDownloadDownloadDownload
7SM06B-HVMK-1AGF-ADownloadDownloadDownload
8SM06B-HVMK-1AGF-BDownloadDownloadDownload
9SM10B-HVMK-1A-ADownloadDownloadDownloadDownload
10SM10B-HVMK-1A-BDownloadDownloadDownloadDownload
11SM10B-HVMK-1AGF-ADownloadDownloadDownloadDownload
12SM10B-HVMK-1AGF-BDownloadDownloadDownloadDownload
13SNAC3-A021T-M0.64Download
Shopping Site
Product Profile
SeriesHVM connector
CategoryAutomotive Connectors
TypeBoard to wire, Non-waterproof
High current & High voltage
FeatureHigh withstanding voltage
Specification
Pitch3.5mm
Current rating5A
Voltage ratingWithstanding voltage: 3,000 VAC/minute (10 circuits), 3,500 VAC/minute (6 circuits)
Product description

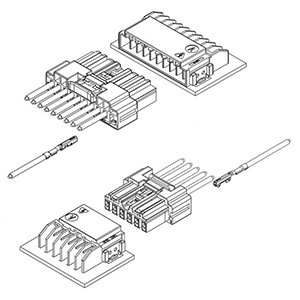

Developed in pursuit of withstanding high voltage,miniaturization and low profile as surface mounting type connector for automotive.To realize the withstanding voltage and miniaturization by flange structure and pitch 3.5/4.0mm design.

HVM connector
