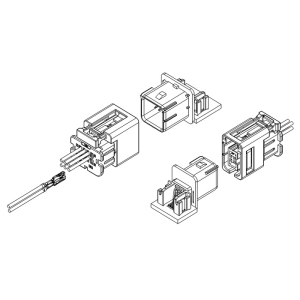

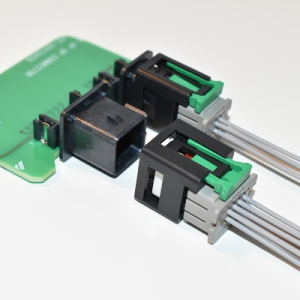

WMCB connector
Developed in pursuit of miniaturization and water-proof as surface mounting type connector for automotive. To realize miniaturization and high reliability with the 0.50 terminal and CPA design.
Product Profile
SeriesWMCB connector
CategoryAutomotive Connectors
Sub
category		Wire-to-Board
PC board
mounting		SMT
Mating
direction		Side entry
Terminal
size		0.5 terminal
Array
(Insertion part)		Dual-row
LockSecure lock (Outer)
RetainerRetainer
Mating
assist		CPA, Keying
WaterproofYes
Specification
Pitch2mm
Circuit4, 8
Current
rating		3 A AC/DC
Temperature
range		-40℃ to +105℃
Insulation
resistance		100MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 1,000 VAC for one minute.
Conductor
size		0.22mm2 to 0.35mm2
Insulation O.D.φ1mm to φ1.3mm
RemarksApplicable wire: CIVUS, FLRY-A
Catalog Catalog
Shopping Site WMCB connector WMCB connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1SWMC-A011T-0.5
-
-
-
Download
204WMCB-RSBC-VM-2A-K-ADownloadDownloadDownloadDownload
308WMCB-RSBC-VM-2A-K-ADownloadDownloadDownloadDownload
4SM04B-WMCBK-2B-A-TBDownloadDownloadDownloadDownload
5SM08B-WMCBK-2B-A-TBDownloadDownloadDownloadDownload
[Notes]
"-"  in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells: Indicates products that are being prepared for listing.
* For any questions or requests, please contact JST.
