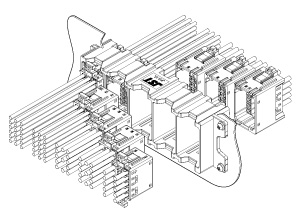

JFA-VL connector
JFA-VL is a highly integrated connector system for electrical circuitry. It is designed for signal and power supply applications for use in factory automation, heavy electricmachinery, railway and general industrial equipment.
Product Profile
SeriesJFA-VL connector
CategoryWire-to-Wire Connectors
Wiring
type		Crimp style
Panel
mounting		Screw lock
LockSecure lock (Inner)
RetainerRetainer
Mating
assist		Keying
Specification
Current
rating		15 A AC/DC (VL series, AWG #12)
15 A AC/DC (J4000 series, AWG #12)
10 A AC/DC (J300 series, AWG #14)
8 A AC/DC (J300 series, AWG #16)
Voltage
rating		600 V AC/DC
Temperature
range		-55℃ to +105℃
Conductor
size		AWG #28,#26,#24,#22,#20,#18,#16,#14,#12
0.08mm2 to 3.5mm2
Insulation O.D.φ0.8mm to φ4.2mm
Catalog Catalog
JFA-VL connector JFA-VL connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1SF3F-002GF-P2.0
-
-
-
Download
2SF3F-01GF-P2.0
-
-
-
Download
3SF3F-41GF-P2.0
-
-
-
Download
4SF3F-71GF-P2.0
-
-
-
Download
5SJ4F-71GF-M3.0
-
-
-
Download
6SJ4F-81GF-M3.0
-
-
-
Download
7SVF-61T-P2.0
-
-
-
Download
8SVF-81T-P2.0
-
-
-
Download
9SF3M-002GF-M2.0N
-
-
-
Download
10SF3M-01GF-M2.0N
-
-
-
Download
11SF3M-41GF-M2.0N
-
-
-
Download
12SF3M-71GF-M2.0N
-
-
-
Download
13SVM-61T-P2.0
-
-
-
Download
14SVM-81T-P2.0
-
-
-
Download
15FV3FTS-18V-KXDownloadDownloadDownload
16FV3FTS-18V-SY
+
+
+
17FV3FTS-18V-EZ
+
+
+
18FV3FTS-18V-MW
+
+
+
19FV3MTS-18V-KXDownloadDownloadDownload
20FV3MTS-18V-SY
+
+
+
21FV3MTS-18V-EZ
+
+
+
22FV3MTS-18V-MW
+
+
+
23FV4FTS-13V-KXDownloadDownloadDownload
24FV4FTS-13V-SY
+
+
+
25FV4FTS-13V-EZ
+
+
+
26FV4FTS-13V-MW
+
+
+
27FV4FTS-13V-RV
+
+
+
28FV4FTPL-13V-KX-M4DownloadDownloadDownload
29FV4MTS-13V-KXDownloadDownloadDownload
30FV4MTS-13V-SY
+
+
+
31FV4MTS-13V-EZ
+
+
+
32FV4MTS-13V-MW
+
+
+
33FV4MTS-13V-RV
+
+
+
34FVLFDS-10V-SDownloadDownloadDownload
35FVLMDS-10V-SDownloadDownloadDownload
36FVLLS-05V-SDownloadDownloadDownload
37FVFPA-05V-KDownloadDownloadDownload
[Notes]
"-"  in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells: Indicates products that are being prepared for listing.
* For any questions or requests, please contact JST.
