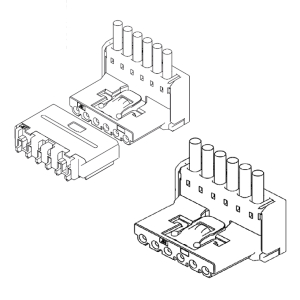

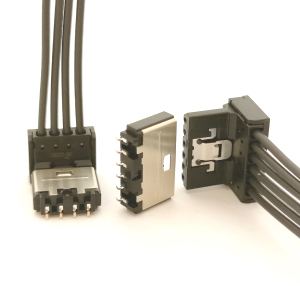

ULH connector Right Angle Up Type
This SMT connector that achieves the world's smallest class connector height of 3.5 mm as a crimped specification while having performance that meets the in-vehicle standards USCAR-2 and LV214. (Contact JST for details)
Product Profile
SeriesULH connector Right Angle Up Type
CategoryAutomotive Connectors
Sub
category		Wire-to-Board
PC board
mounting		SMT
Mating
direction		Side entry
Array
(Insertion part)		Single-row
LockSecure lock (Inner)
Mating
assist		Keying
StandardLV214, USCAR
OthersHalogen-free
Specification
Pitch2mm
Circuit2, 4, 6, 8
Current
rating		5 A AC/DC
Voltage
rating		100 V AC/DC
Temperature
range		-40℃ to +125℃
Insulation
resistance		100MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 1,000 VAC for one minute.
Conductor
size		0.3mm2 to 0.35mm2
Insulation O.D.φ1.2mm to φ1.5mm
Catalog Catalog Manual Manual
ULH connector Right Angle Up Type ULH connector Right Angle Up Type

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1SRULH-A021GF-0.5
-
-
-
Download
2SRULH-A021T-0.5
-
-
-
Download
3ULHRB-02V-1C1-K(HF)Download
4ULHRB-04V-1C1-K(HF)DownloadDownloadDownloadDownload
5ULHRB-06V-1C1-K(HF)DownloadDownloadDownloadDownload
6ULHRB-08V-1C1-K(HF)Download
7ULHCR-02V-A-K(HF)Download
8ULHCR-04V-A-K(HF)Download
9ULHCR-06V-A-K(HF)Download
10ULHCR-08V-A-K(HF)Download
11SM02B-ULHK-1GFA1-ETB(HF)DownloadDownloadDownloadDownload
12SM04B-ULHK-1GFA1-ETB(HF)DownloadDownloadDownloadDownload
13SM06B-ULHK-1GFA1-ETB(HF)DownloadDownloadDownloadDownload
14SM08B-ULHK-1GFA1-ETB(HF)DownloadDownloadDownloadDownload
15SM02B-ULHK-1TA1-ETB(HF)
+
+
+
Download
16SM04B-ULHK-1TA1-ETB(HF)
+
+
+
Download
17SM06B-ULHK-1TA1-ETB(HF)
+
+
+
Download
18SM08B-ULHK-1TA1-ETB(HF)
+
+
+
Download
19SM04B-ULHK-1GFD1-ETB(HF)DownloadDownloadDownloadDownload
20SM06B-ULHK-1GFD1-ETB(HF)DownloadDownloadDownloadDownload
21SM08B-ULHK-1GFD1-ETB(HF)DownloadDownloadDownloadDownload
22SM04B-ULHK-1TD1-ETB(HF)
+
+
+
Download
23SM06B-ULHK-1TD1-ETB(HF)
+
+
+
Download
24SM08B-ULHK-1TD1-ETB(HF)
+
+
+
Download
[Notes]
"-"  in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells: Indicates products that are being prepared for listing.
* For any questions or requests, please contact JST.
