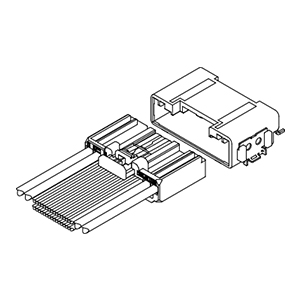

PICO-H® connector
Miniaturized 0.5 mm, 1.2 mm Hybrid SMT Connector System for automotive applications.
Product Profile
SeriesPICO-H® connector
CategoryAutomotive Connectors
Sub
category		Wire-to-Board
PC board
mounting		SMT
Mating
direction		Side entry
Terminal
size		0.5 terminal, 1.2 terminal
Array
(Insertion part)		Dual-row staggered
LockSecure lock (Inner)
RetainerTPA
Mating
assist		CPA, Keying
HybridYes
StandardLV214, USCAR
Specification
Pitch2mm, 3.2mm (Power supply circuit)
Circuit20
Current
rating		5 A DC (0.5 terminal, 0.5 mm2)
14 A DC (1.2 terminal, 0.75 mm2), 19 A DC (1.2 terminal, 1.5 mm2)
Voltage
rating		14 V DC
Temperature
range		-40℃ to +125℃
Insulation
resistance		100MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 1,000 VAC for one minute.
Conductor
size		0.13mm2 to 0.5mm2 (Signal circuit)
0.5mm2 to 1.5mm2 (Power supply circuit)
Insulation O.D. to φ1.6mm (Signal circuit)
φ1.6mm to φ2.4mm (Power supply circuit)
RemarksTemperature range:
LV214 TG21 / -40°C to 125°C
USCAR-2 / -40°C to 100°C
Catalog Catalog
Shopping Site PICO-H® connector PICO-H® connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1PICOHPB-20-2AKDownloadDownloadDownloadDownload
2PICOHPB-20-2BSDownloadDownloadDownloadDownload
3PICOHPB-20-2CHDownloadDownloadDownloadDownload
4SM20B-PICOH-2AKDownloadDownloadDownloadDownload
5SM20B-PICOH-2BSDownloadDownloadDownloadDownload
6SM20B-PICOH-2CHDownloadDownloadDownloadDownload
7SPICO-A011T-C05Download
8SPICO-A021T-C05Download
9SPICO-A031T-C05Download
[Notes]
"-"  in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells: Indicates products that are being prepared for listing.
* For any questions or requests, please contact JST.
