HOME > Product Profile

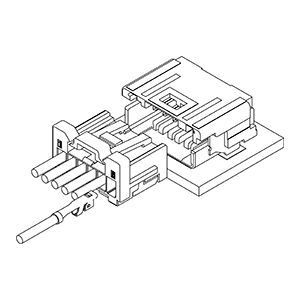

MLH connector
Ultra-miniaturized connection system for automotive usage
Product Profile
SeriesMLH connector
CategoryAutomotive Connectors
Sub
category		Wire-to-Board
PC board
mounting		SMT
Mating
direction		Side entry
Array
(Insertion part)		Single-row
LockSecure lock (Inner), Inertia lock
RetainerTPA
Mating
assist		Keying, Incomplete mating prevention
Specification
Pitch2mm
Circuit6
Current
rating		3 A AC/DC (AWG #22)
Voltage
rating		14V DC
Temperature
range		-40℃ to +100℃
Insulation
resistance		100MΩ min.
Conductor
size		AWG #22
0.35mm2
Insulation O.D. to φ1.5mm
Catalog Catalog
MLH connector MLH connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1MLHP-06A-1AKDownloadDownloadDownloadDownload
2MLHP-06A-1BSDownloadDownloadDownloadDownload
3SM06B-MLH-1AKDownloadDownloadDownloadDownload
4SM06B-MLH-1BSDownloadDownloadDownloadDownload
[Notes]
"-"  in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells: Indicates products that are being prepared for listing.
