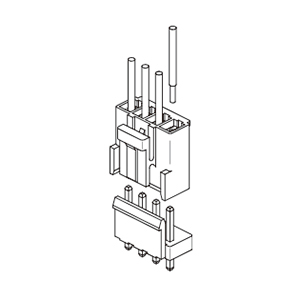

Quick-connect type for use with solid wire can be successfully utilized in a wide range of applications. Wire harness assembly can be conveniently performed on-site by simply inserting stripped solid wire into the connector housing. This operation is ideal for making on-the-spot electrical connections at the worksite.
Product Profile
| Series | VH connector (Quick-connect type) |
| Category | Spring Type |
PC board
mounting | Through-hole |
Mating
direction | Top entry |
| Lock | Secure lock (Outer), Secure lock (Center) |
Specification
| Pitch | 3.96 mm |
| Circuit | 4 |
Current
rating | 7 A AC/DC (Based on φ1.0 mm size solid wire) |
Voltage
rating | 250 V AC/DC |
Temperature
range | -25 ℃ to +105 ℃ |
Insulation
resistance | 1,000 MΩ min. |
Withstanding
voltage | There shall be no breakdown or flashover while applying 1,500 VAC for one minute. |
Conductor
size | φ 0.8 mm to φ 1 mm |
| Insulation O.D. | φ 1.1 mm to φ 1.3 mm |
[Notes]
"-" in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells:
Indicates products that are being prepared for listing.
* For any questions or requests, please contact JST.
