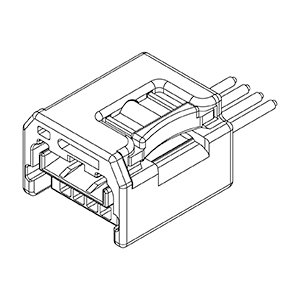

JSRC connector
0.64 mm wire-to-unit connector with rigid design and spring lock mechanism. Spring force prevents incomplete mating during the mating process and keeps constant rigid connection between unit and female connector
Product Profile
SeriesJSRC connector
CategoryAutomotive Connectors
Sub
category		Wire-to-Device
Terminal
size		0.64 terminal
Array
(Insertion part)		Single-row
LockSpring lock
RetainerRetainer
Mating
assist		Keying, Incomplete mating prevention
ApplicationAir bag
OthersAnti-vibration mechanism, Halogen-free
Specification
Circuit4
Current
rating		5 A AC/DC
Temperature
range		-40℃ to +80℃
Insulation
resistance		100MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 1,000 VAC for one minute.
Conductor
size		0.3mm2 to 0.5mm2
Insulation O.D. to φ1.9mm
