FLZ connector
pdf Catalog pdf Manual 2D3d 3D Data
ProductIGESSTEP3D-PDF
106FLZ-RSM2-TBDownloadDownloadDownload
206FLZ-SM2-TBDownloadDownloadDownload
307FLZ-RSM2-TBDownloadDownloadDownload
407FLZ-SM2-TBDownloadDownloadDownload
508FLZ-RSM2-TBDownloadDownloadDownload
608FLZ-SM2-TBDownloadDownloadDownload
709FLZ-RSM2-TBDownloadDownloadDownload
809FLZ-SM2-TBDownloadDownloadDownload
910FLZ-RSM2-TBDownloadDownloadDownload
1010FLZ-SM2-TBDownloadDownloadDownload
1111FLZ-RSM2-TBDownloadDownloadDownload
1211FLZ-SM2-TBDownloadDownloadDownload
1312FLZ-RSM2-TBDownloadDownloadDownload
1412FLZ-SM2-TBDownloadDownloadDownload
1513FLZ-RSM2-TBDownloadDownloadDownload
1613FLZ-SM2-TBDownloadDownloadDownload
1714FLZ-RSM2-TBDownloadDownloadDownload
1814FLZ-SM2-TBDownloadDownloadDownload
1915FLZ-RSM2-TBDownloadDownloadDownload
2015FLZ-SM2-TBDownloadDownloadDownload
2116FLZ-RSM2-TBDownloadDownloadDownload
2216FLZ-SM2-TBDownloadDownloadDownload
2317FLZ-SM2-TBDownloadDownloadDownload
2418FLZ-RSM2-TBDownloadDownloadDownload
2518FLZ-SM2-TBDownloadDownloadDownload
2619FLZ-RSM2-TBDownloadDownloadDownload
2719FLZ-SM2-TBDownloadDownloadDownload
2820FLZ-RSM2-TBDownloadDownloadDownload
2920FLZ-SM2-TBDownloadDownloadDownload
3021FLZ-RSM2-TBDownloadDownloadDownload
3121FLZ-SM2-TBDownloadDownloadDownload
3222FLZ-RSM2-TBDownloadDownloadDownload
3322FLZ-SM2-TBDownloadDownloadDownload
3423FLZ-RSM2-TBDownloadDownloadDownload
3523FLZ-SM2-TBDownloadDownloadDownload
3624FLZ-RSM2-TBDownloadDownloadDownload
3724FLZ-SM2-TBDownloadDownloadDownload
3825FLZ-RSM2-TBDownloadDownloadDownload
3925FLZ-SM2-TBDownloadDownloadDownload
4026FLZ-RSM2-TBDownloadDownloadDownload
4126FLZ-SM2-TBDownloadDownloadDownload
4227FLZ-RSM2-TBDownloadDownloadDownload
4327FLZ-SM2-TBDownloadDownloadDownload
4428FLZ-RSM2-TBDownloadDownloadDownload
4528FLZ-SM2-TBDownloadDownloadDownload
4630FLZ-RSM2-TBDownloadDownloadDownload
4730FLZ-SM2-TBDownloadDownloadDownload
4832FLZ-RSM2-R-TBDownloadDownloadDownload
4932FLZ-SM2-R-TBDownloadDownloadDownload
5033FLZ-SM2-TBDownloadDownloadDownload
5134FLZ-RSM2-R-TBDownloadDownloadDownload
5234FLZ-SM2-R-TBDownloadDownloadDownload
5336FLZ-RSM2-R-TBDownloadDownloadDownload
5436FLZ-SM2-R-TBDownloadDownloadDownload
5540FLZ-RSM2-R-TBDownloadDownloadDownload
5640FLZ-SM2-R-TBDownloadDownloadDownload
5742FLZ-SM2-R-TBDownloadDownloadDownload
5850FLZ-SM2-R-TBDownloadDownloadDownload
Shopping Site
Product Profile
SeriesFLZ connector
CategoryFFC/FPC Connectors
TypeZero insertion force type, SMT type
FeatureLow-profile
Specification
Pitch0.5mm
Current rating0.5A
Voltage rating50V
PC board mounting directionSide entry
Product description

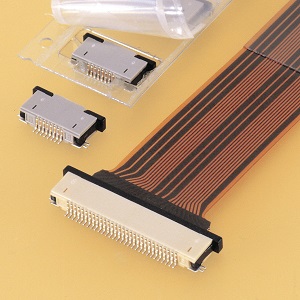

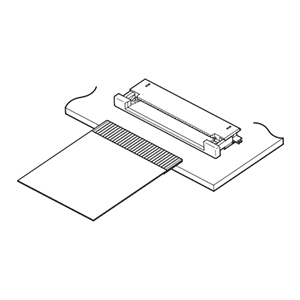

This is a 0.5 mm pitch, compact FFC/FPC connector with a mounting height of 2 mm. It features Zero Insertion Force (ZIF) connection, which is effective in improving wear resistance and insertion/withdrawal life. Both normal (upper contact type) and reverse (bottom contact type) connection types are available, contributing to greater flexibility in the design process.

FLZ connector
