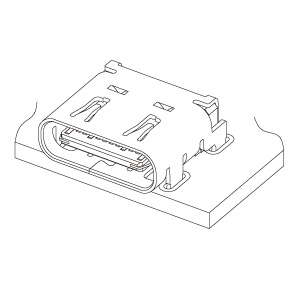

The UBC connector is a USB3.2 Type-C interface connector, capable of supplying up to 100W of power. The receptacle is USB3.2 compliant with a data transmission rate of up to 20 Gbps. Reversible structure that can be inserted regardless of front or back orientation of the plug.
Product Profile
| Series | UBC connector (USB3.2 TypeC) |
| Category | Interface Connection Connectors |
PC board
mounting | SMT |
Mating
direction | Side entry |
| Standard | USB3.2 Type-C |
Specification
Current
rating | 1.25 A DC (Vbus (A4, A9, B4, B9), GND (A1, A12, B1, B12), CC1 (A5), CC2 (B5))
0.25 A DC (Other circuits) |
Voltage
rating | 20 V AC |
Temperature
range | -25℃ to +85℃ |
Insulation
resistance | 100MΩ min. |
Withstanding
voltage | There shall be no breakdown or flashover while applying 100 VAC for one minute. |
[Notes]
"-" in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells:
Indicates products that are being prepared for listing.
* For any questions or requests, please contact JST.
