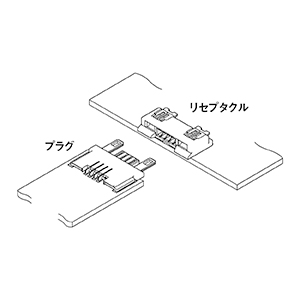

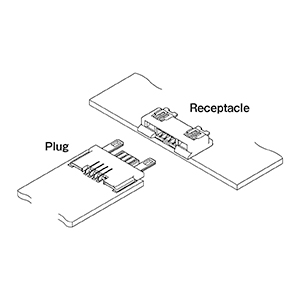

LEI connector
The LEI connector is a staggered horizontal board-to-board type interconnect for coplanar applications. It can accommodate mating misalignment and features a robust metal lock. With a low-profile height of only 2.4 mm and excellent mating reliability, it is ideal for applications such as connecting LED backlight boards in LCD televisions.
Product Profile
SeriesLEI connector
CategoryBoard-to-Board Connectors
Connecting
style		Horizontal
PC board
mounting		SMT
LockSecure lock
Mating
assist		Misalignment absorption
StandardUL
OthersHalogen-free, LED lighting
Specification
Pitch1mm, 7.6mm
Current
rating		1A AC/DC (Contact A)
3 A AC/DC (Contact B)
Voltage
rating		150 V AC/DC
Temperature
range		-25℃ to +85℃
Insulation
resistance		100MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 500 VAC for one minute.
