SQBN connector

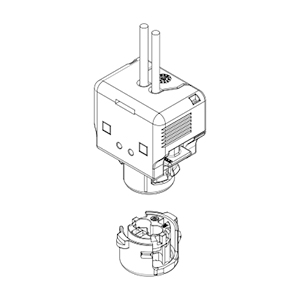

Shunt-less Squib Connector. Connector for air-bag with Go/No-Go system, which allows locking connector and detect incomplete mating.
Product Profile
SeriesSQBN connector
CategoryAutomotive Connectors
Sub
category		Squib
LockSpring lock
Mating
assist		Incomplete mating prevention
Transmission
Electromagnetic		Noise measure
StandardUSCAR
ApplicationAir bag
Specification
Current
rating		3A AC/DC
Temperature
range		-40 ℃ to +85 ℃
Insulation
resistance		100 MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 1,000 VAC for one minute.
Conductor
size		0.3 mm2 to 0.5 mm2
Insulation O.D.φ 1.4 mm to φ 1.6 mm
Catalog Catalog
SQBN connector SQBN connector

3D Data
ProductIGESSTEP3D-PDF
1SQBP-02H-1A-PKDownloadDownloadDownload
2SQBP-02H-1B-DVDownloadDownloadDownload
3SQBP-02H-1C-HDownloadDownloadDownload
4SQBP-02H-1D-MDownloadDownloadDownload
[Notes]
"-"  in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells: Indicates products that are being prepared for listing.
* For any questions or requests, please contact JST.
