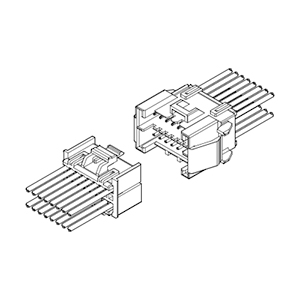

XM connector (Meets glow wire testing standards)
This is a 2.5 mm pitch, dual-row wire-to-wire connector that comes with glow-wire compliant housing material and allows the use of retainers, even on large circuits.
Product Profile
SeriesXM connector (Meets glow wire testing standards)
CategoryCompatible with Glow Wire Test
Sub
category		Wire-to-Wire
Panel
mounting		Panel lock
Array
(Insertion part)		Dual-row
LockSecure lock (Inner)
RetainerRetainer
StandardUL
Specification
Pitch2.5 mm
Circuit16, 18, 26
Current
rating		3 A AC/DC (AWG #20)
Voltage
rating		250 V AC/DC
Temperature
range		-25 ℃ to +105 ℃
Insulation
resistance		500 MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 1,500 VAC for one minute.
Conductor
size		AWG # 26 , # 24 , # 22 , # 20
0.13 mm2 to 0.5 mm2
Insulation O.D.φ 1.3 mm to φ 1.9 mm
Catalog Catalog
XM connector (Meets glow wire testing standards) XM connector (Meets glow wire testing standards)
