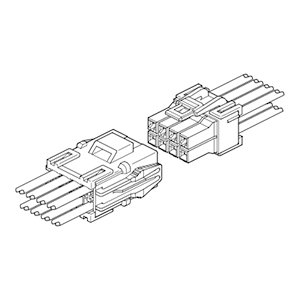

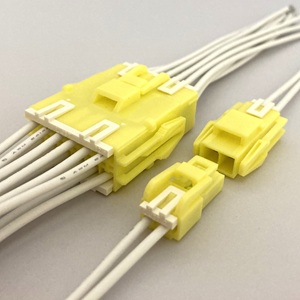

YL connector (Meets glow wire testing standards)
This is a 4.5 mm pitch, wire-to-wire connector that comes with glow-wire compliant housing material and allows the use of retainers.
Product Profile
SeriesYL connector (Meets glow wire testing standards)
CategoryCompatible with Glow Wire Test
Sub
category		Wire-to-Wire
Panel
mounting		Panel lock, Free-hanging
Array
(Insertion part)		Single-row, Dual-row
LockSecure lock (Inner), Secure lock (Center)
RetainerRetainer
StandardUL, CSA
Others2 wire crimping
Specification
Pitch4.5mm
Circuit2, 3, 4, 8, 10, 12, 20
Current
rating		7 A AC/DC (2 circuits, AWG #18)
1 A AC/DC (20 circuits, AWG #26)
Voltage
rating		300 V AC/DC
Temperature
range		-25℃ to +90℃
Insulation
resistance		1,000MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 1,500 VAC for one minute.
Conductor
size		AWG #26,#24,#22,#20,#18
0.13mm2 to 0.75mm2
Insulation O.D.φ1.3mm to φ2.7mm
Catalog Catalog
YL connector (Meets glow wire testing standards) YL connector (Meets glow wire testing standards)
