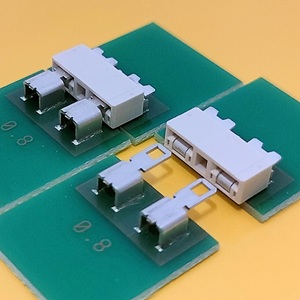

LEKU connector

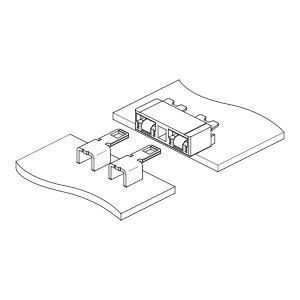

This is a board-to-board connector for coplanar interconnect configurations, featuring robust metal latches and a misalignment-absorption function when mated.
Product Profile
SeriesLEKU connector
CategoryBoard-to-Board Connectors
Connecting
style		Horizontal
PC board
mounting		SMT
LockSecure lock
Mating
assist		Misalignment absorption
StandardUL
OthersHalogen-free, LED lighting
Specification
Pitch6 mm
Current
rating		3 A AC/DC
Voltage
rating		300 V AC/DC
Temperature
range		-55 ℃ to +105 ℃
Insulation
resistance		100 MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 500 VAC for one minute.
