FMS connector

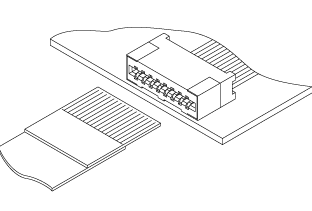

The FMS series connectors are designed for surface mounting (SMT) and to meet the demand for high-density packaging. They are miniature connectors with a height of only 2.8 mm, and can be supplied packaged in embossed tape to facilitate automatic mounting.
Product Profile
SeriesFMS connector
CategoryFFC/FPC Connectors
Applicable
FPC/FFC		FFC
FPC/FFC
thickness		0.3 mm
ZIF
Non-ZIF		Non-ZIF
PC board
mounting		SMT
Mating
direction		Side entry
Contact
surface side		Both sides contact
StandardCSA, UL
Specification
Pitch1mm
Circuit3, 4, 5, 6, 8, 10, 12, 14
Current
rating		0.5 A AC/DC
Voltage
rating		50 V AC/DC
Temperature
range		-25℃ to +85℃
Insulation
resistance		800MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 500 VAC for one minute.
Catalog Catalog Manual Manual
Shopping Site FMS connector FMS connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
103FMS-1.0SP-TFDownloadDownloadDownloadDownload
204FMS-1.0SP-TFDownloadDownloadDownloadDownload
305FMS-1.0SP-TFDownloadDownloadDownloadDownload
406FMS-1.0SP-TFDownloadDownloadDownloadDownload
508FMS-1.0SP-TFDownloadDownloadDownloadDownload
610FMS-1.0SP-TFDownloadDownloadDownloadDownload
712FMS-1.0SP-TFDownloadDownloadDownloadDownload
814FMS-1.0SP-TFDownloadDownloadDownloadDownload
