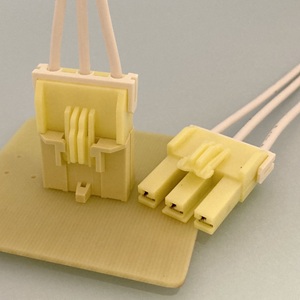

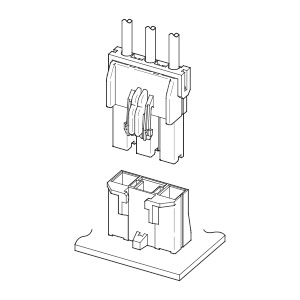

| Series | PW connector (Type H) |
| Category | Compatible with Glow Wire Test |
| Sub category | Wire-to-Board |
| PC board mounting | Through-hole |
| Mating direction | Top entry |
| Array (Insertion part) | Single-row |
| Lock | Secure lock (Inner), Secure lock (Center) |
| Retainer | Retainer |
| Standard | UL, CSA |
| Pitch | 6.5 mm |
| Circuit | 3 |
| Current rating | 11 A AC/DC (AWG #16) 7 A AC/DC (AWG #20) |
| Voltage rating | 600 V AC/DC |
| Temperature range | -30 ℃ to +105 ℃ |
| Insulation resistance | 1,000 MΩ min. |
| Withstanding voltage | There shall be no breakdown or flashover while applying 2,200 VAC for one minute. |
| Conductor size | AWG # 20 , # 18 , # 16 0.5 mm2 to 1.25 mm2 |
| Insulation O.D. | φ 1.8 mm to φ 2.8 mm |
