HOME > Product Profile

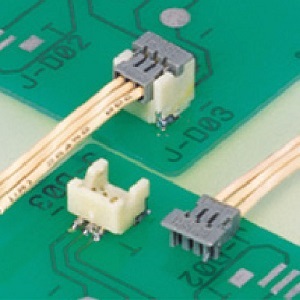

AGH connector
pdf Catalog pdf Manual 2D3d 3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1AGHR-03V-1-HDownloadDownloadDownloadDownload
2BM03B3.9-AGHS-GH-TFDownloadDownloadDownloadDownload
3BM03B5.6-AGHS-GG-TFDownloadDownloadDownloadDownload
4SAGH-002GU-P0.3Download
Shopping Site
Product Profile
SeriesAGH connector
CategoryCrimp Style Connectors (Wire-to-Board type)
TypeFor mobile phones and battery connections
Disconnectable type
Specification
Pitch1.25mm
Current rating1.0A
Voltage rating50V
PC board mounting directionTop entry
Product description
This connector system has excellent operational advantages due to its top entry style. In addition, with the wires on the side, it is low profile, similar to a side entry style.

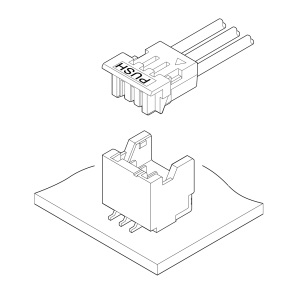

AGH connector
