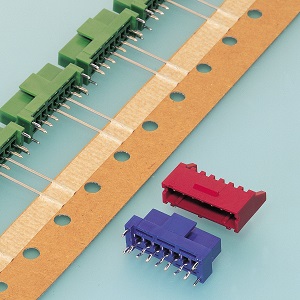

JL connector

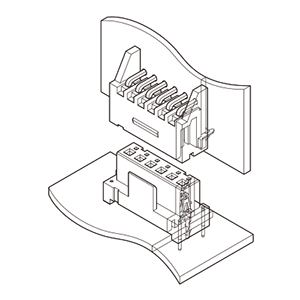

The JL series is a 2.5 mm pitch board-to-board connector designed for perpendicular connections with improved mounting strength.
It is robust and offers excellent resistance against shock and vibration.
Product Profile
SeriesJL connector
CategoryBoard-to-Board Connectors
Connecting
style		Vertical
PC board
mounting		Through-hole
LockSecure lock, Friction lock
StandardCSA, UL
OthersRadial taping
Specification
Pitch2.5mm
Circuit3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 15
Current
rating		3 A AC/DC
Voltage
rating		250 V AC/DC
Temperature
range		-25℃ to +85℃
Insulation
resistance		1,000MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 1,000 VAC for one minute.
Catalog Catalog Manual Manual
Shopping Site JL connector JL connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
103JL-BT-EDownloadDownloadDownloadDownload
204JL-BT-EDownloadDownloadDownloadDownload
305JL-BT-EDownloadDownloadDownloadDownload
406JL-BT-EDownloadDownloadDownloadDownload
507JL-BT-EDownloadDownloadDownloadDownload
608JL-BT-EDownloadDownloadDownloadDownload
709JL-BT-EDownloadDownloadDownloadDownload
810JL-BT-EDownloadDownloadDownloadDownload
911JL-BT-EDownloadDownloadDownloadDownload
1012JL-BT-EDownloadDownloadDownloadDownload
1113JL-BT-EDownloadDownloadDownloadDownload
1215JL-BT-EDownloadDownloadDownloadDownload
1305JL-BT-M-TDownload
1406JL-BT-M-TDownload
1507JL-BT-M-TDownload
1608JL-BT-M-TDownload
17S3B-JL-RDownloadDownloadDownloadDownload
18S4B-JL-RDownloadDownloadDownloadDownload
19S5B-JL-RDownloadDownloadDownloadDownload
20S6B-JL-RDownloadDownloadDownloadDownload
21S7B-JL-RDownloadDownloadDownloadDownload
22S8B-JL-RDownloadDownloadDownloadDownload
23S9B-JL-RDownloadDownloadDownloadDownload
24S10B-JL-RDownloadDownloadDownloadDownload
25S11B-JL-RDownloadDownloadDownloadDownload
26S12B-JL-RDownloadDownloadDownloadDownload
27S13B-JL-RDownloadDownloadDownloadDownload
28S15B-JL-RDownloadDownloadDownloadDownload
29S3B-JL-F-E
+
+
+
Download
30S4B-JL-F-E
+
+
+
Download
31S5B-JL-F-E
+
+
+
Download
32S6B-JL-F-E
+
+
+
Download
33S8B-JL-F-E
+
+
+
Download
34S9B-JL-F-E
+
+
+
Download
35S10B-JL-F-E
+
+
+
Download
36S11B-JL-F-E
+
+
+
Download
37S12B-JL-F-E
+
+
+
Download
38S13B-JL-F-E
+
+
+
Download
39S15B-JL-F-E
+
+
+
Download
[Notes]
"-"  in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells: Indicates products that are being prepared for listing.
